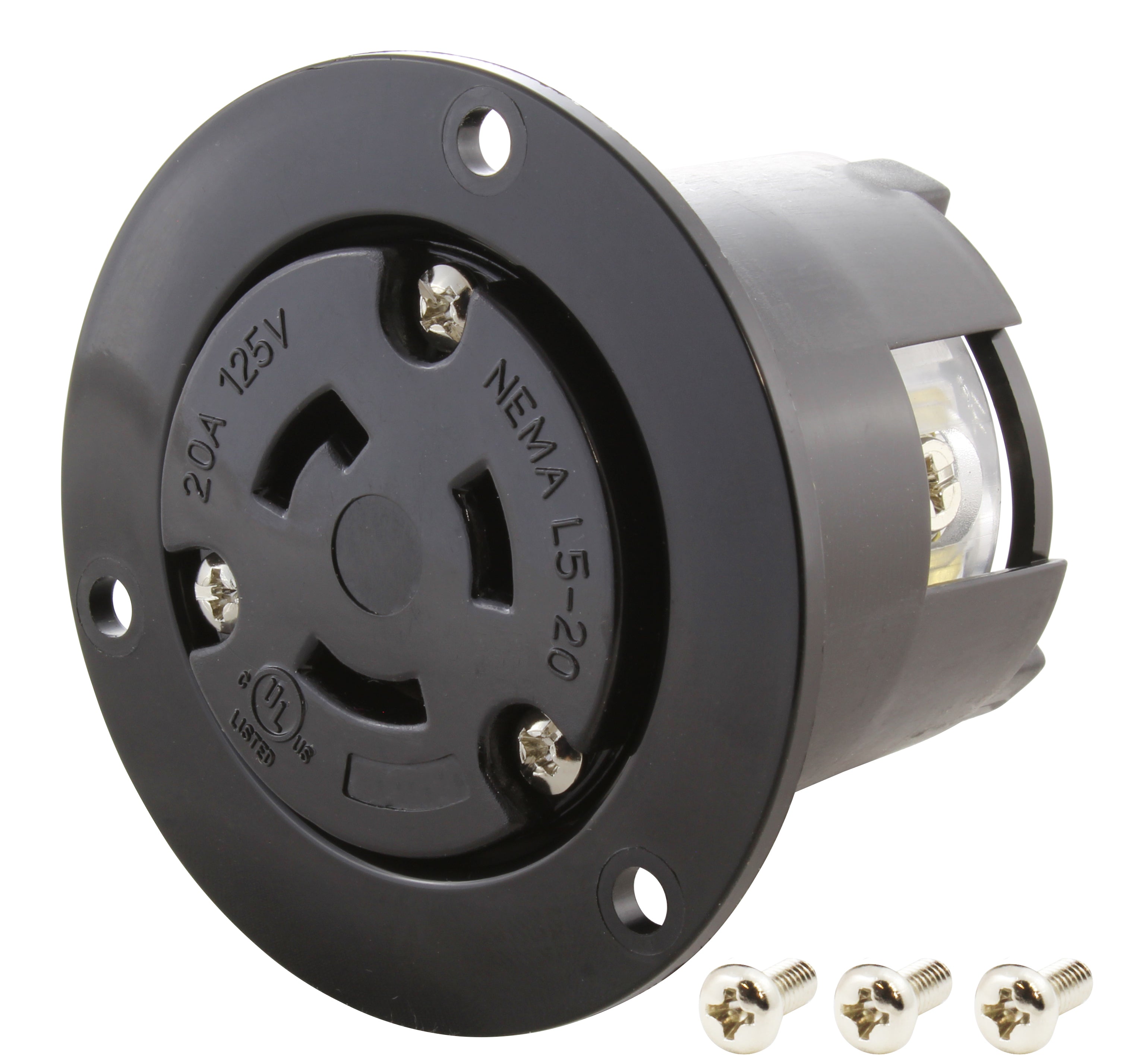

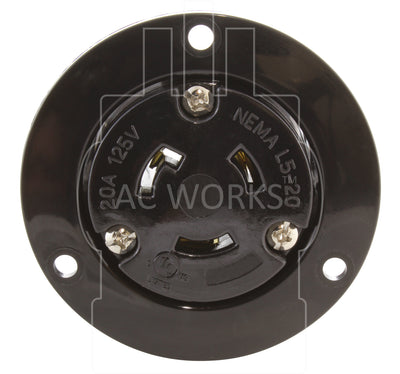

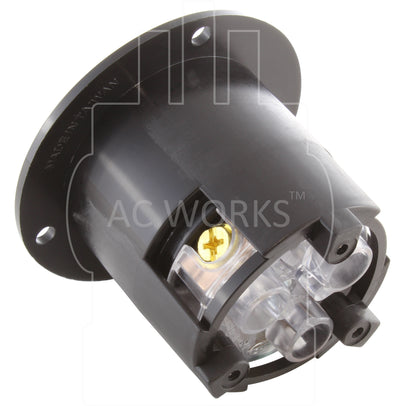

AC WORKS® [ASOUL520R] 20A 125V L5-20R Flanged Outlet UL and C-UL Listed

This AC WORKS® brand NEMA L5-20R wiring device [ASOUL520R] is a heavy-duty power outlet.  It is used for an industrial and commercial grade flange outlet.  This outlet works with 10 or 12 AWG (American Wire Gauge) copper wire and is commonly used for residential, commercial, and industrial power.  Included with your purchase is a 1-year limited warranty. A front cover is available here.

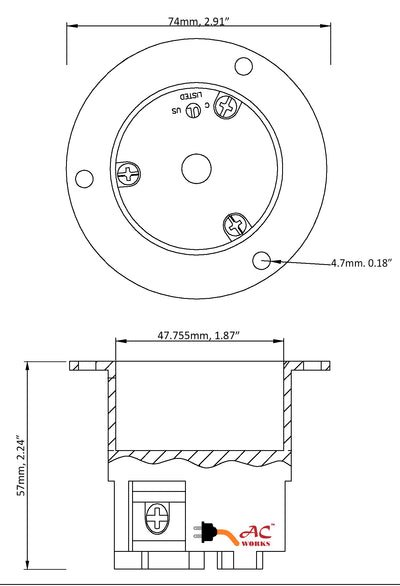

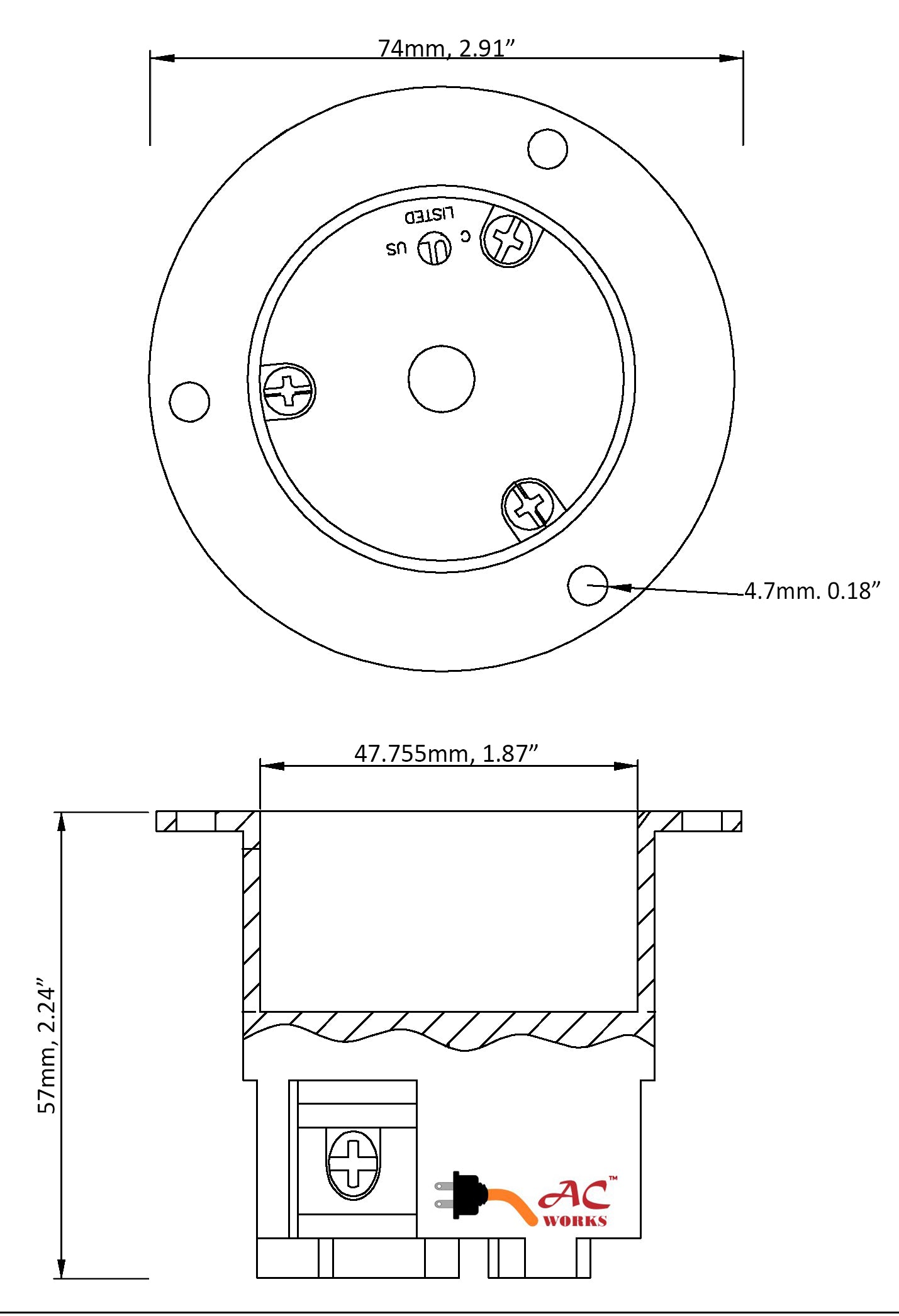

This product requires mounting holes with a saw size between 2.10'' (53.34mm) to 2.3'' (58.42mm).

Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire for 30 Amp

California Residents: See Proposition 65 Information

Features

• Residential, Generator, Transfer Switch, and Cabin Power Outlet
• 20 Amp, 125 Volt Outlet

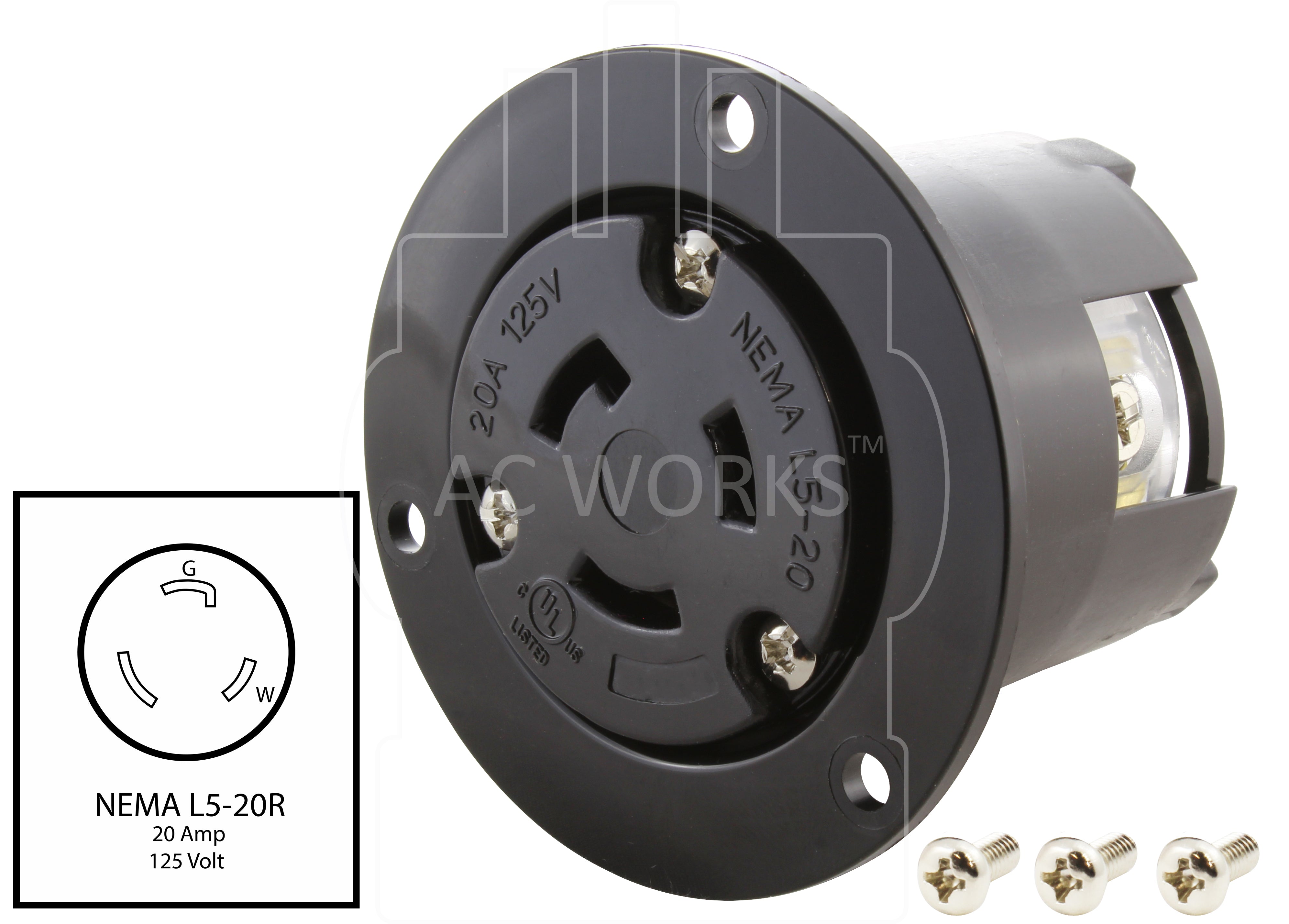

• NEMA L5-20R Locking Power Outlet
• cULus E237606
• 1-year Limited Warranty

Common Uses

• Residential
• Generator
• Transfer Switch
• Cabin Power Outlet

Downloads

AC WORKS® Brand Limited Warranty

15, 20 and 30 Amp Straight Blade or Locking Inlets
