Straight Plugs
Straight prong plugs that are commonly used in household and industrial settings.

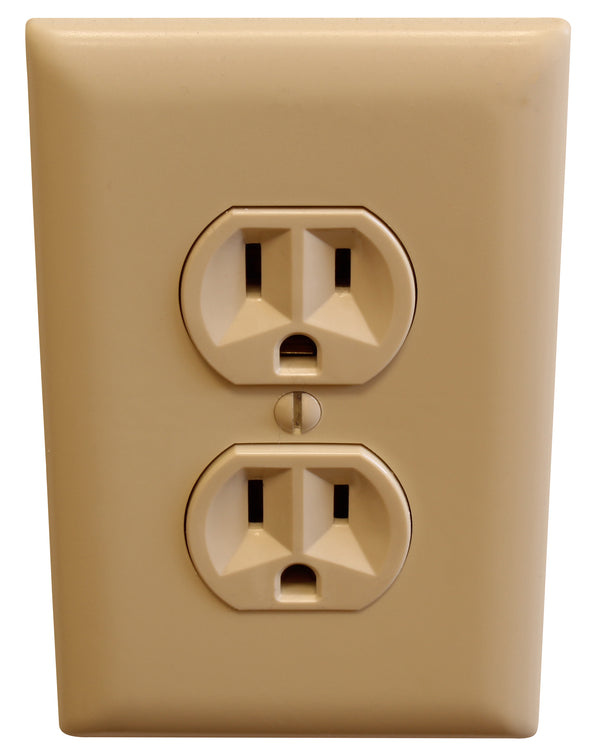

NEMA 5-15
125V 15 AMP
125V 15 AMP
Wiring:
1 hot, 1 neutral + ground
Commonly used with:

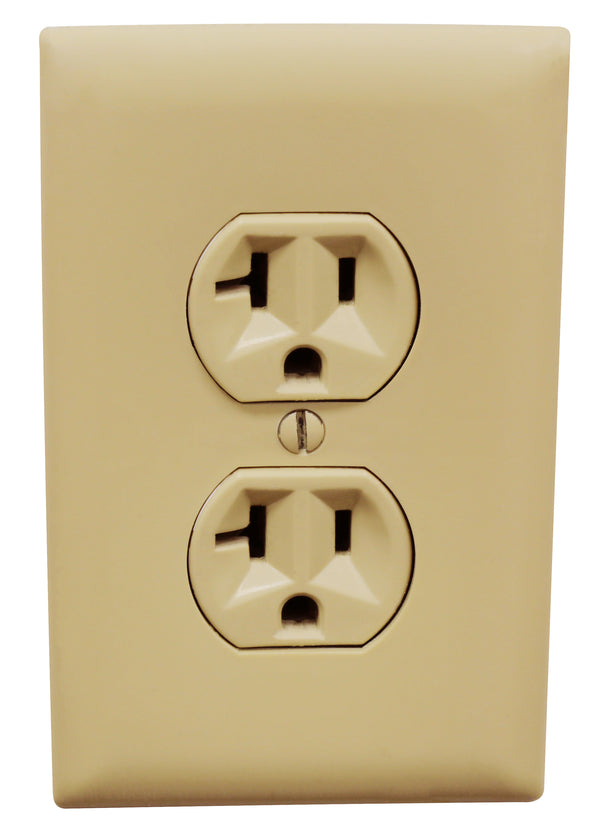

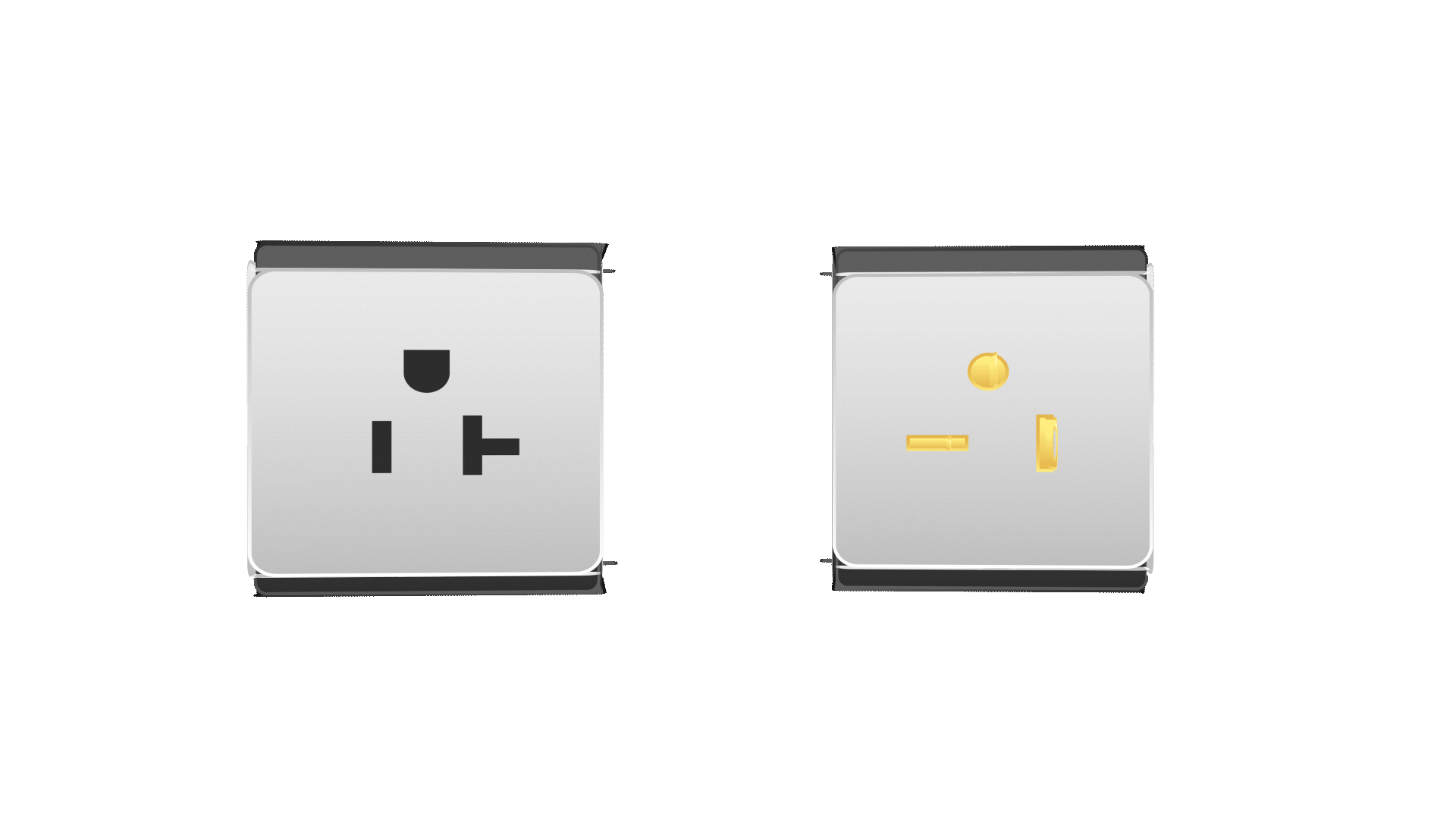

NEMA 5-20
125V 20AMP
125V 20AMP
Wiring:
1 hot + 1 neutral + ground (T-slot design)
Commonly used with:
Higher-load 120V appliances – air conditioners, power tools

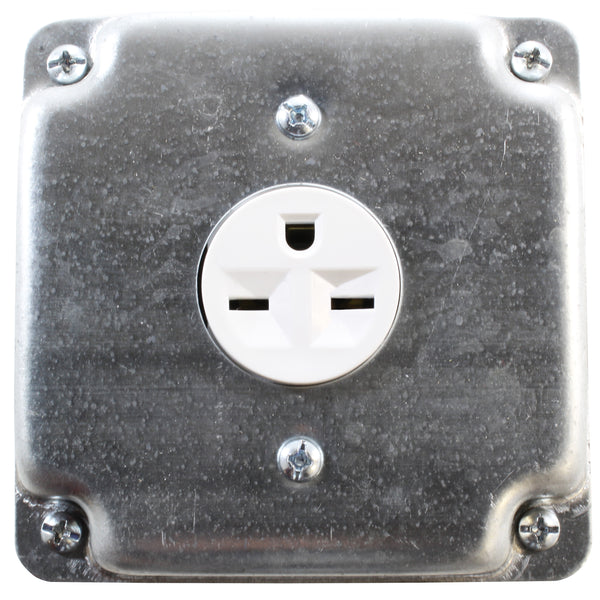

NEMA 6-15
250V 15 AMP
250V 15 AMP
Wiring:
2 hot + ground (no neutral)
Commonly used with:
Low-power 240V devices – air conditioners, some welding tools

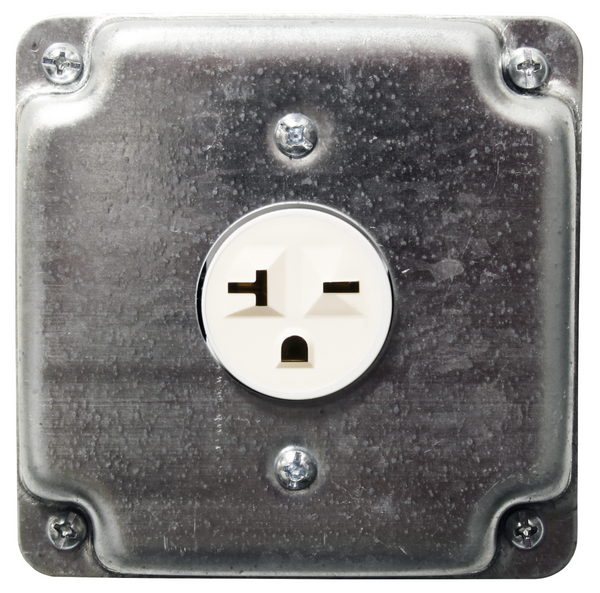

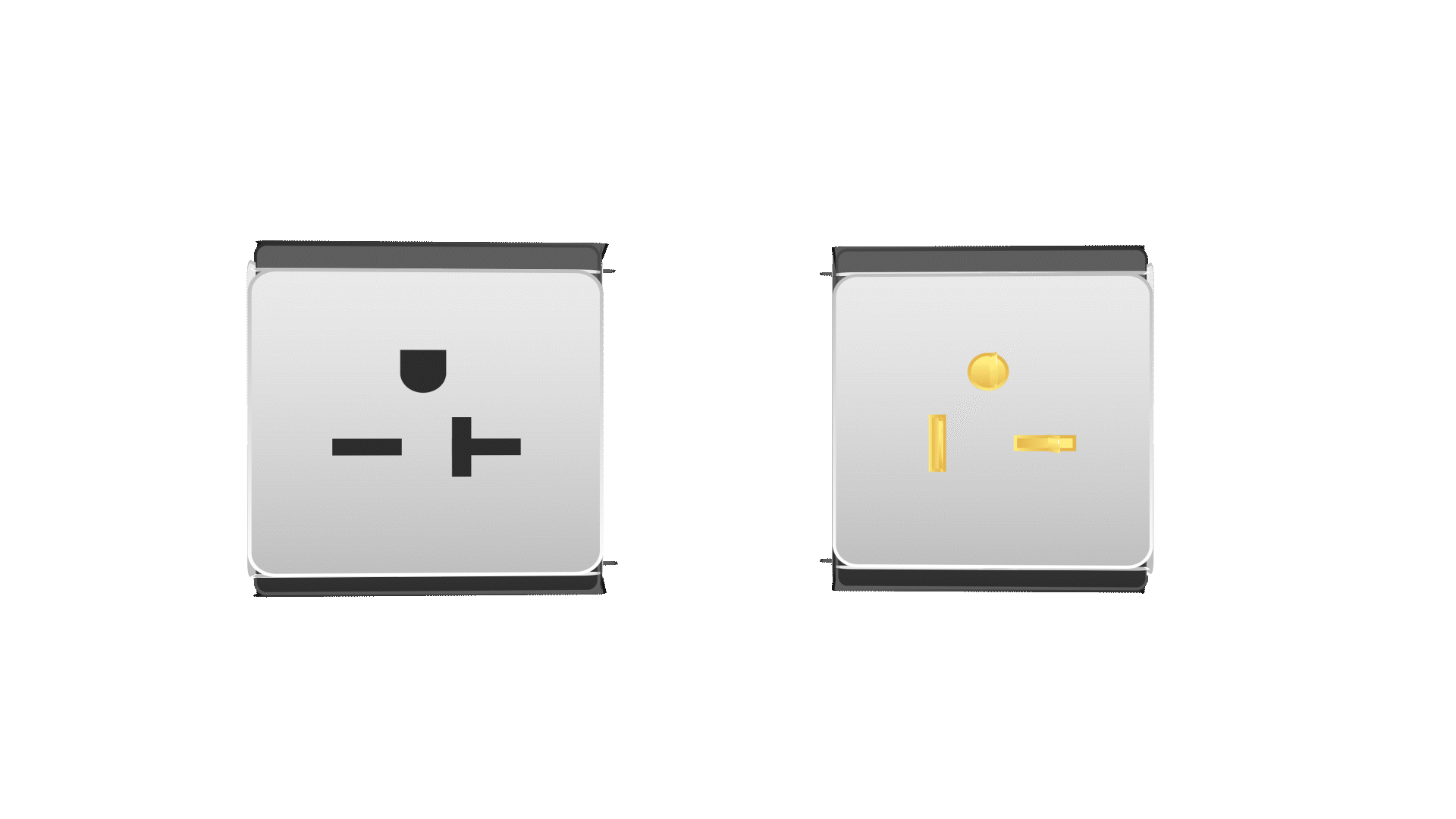

NEMA 6-20
250V 20 AMP
250V 20 AMP
Wiring:
2 hot, 1 ground
Commonly used with:
Small 240V appliances (e.g., window A/C units, some power tools)

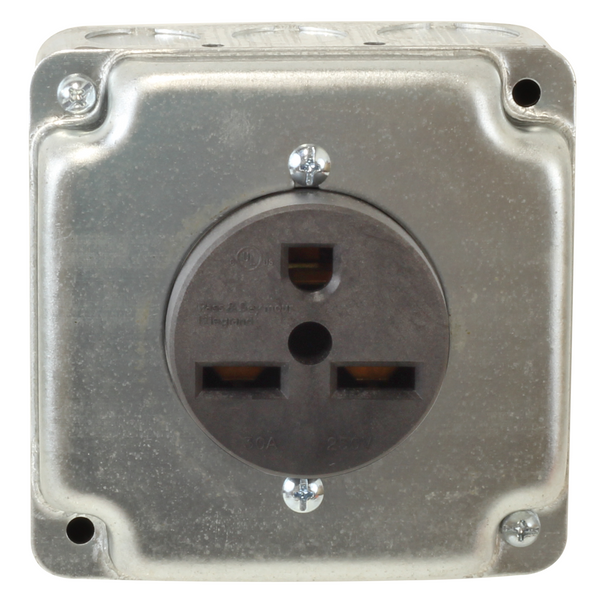

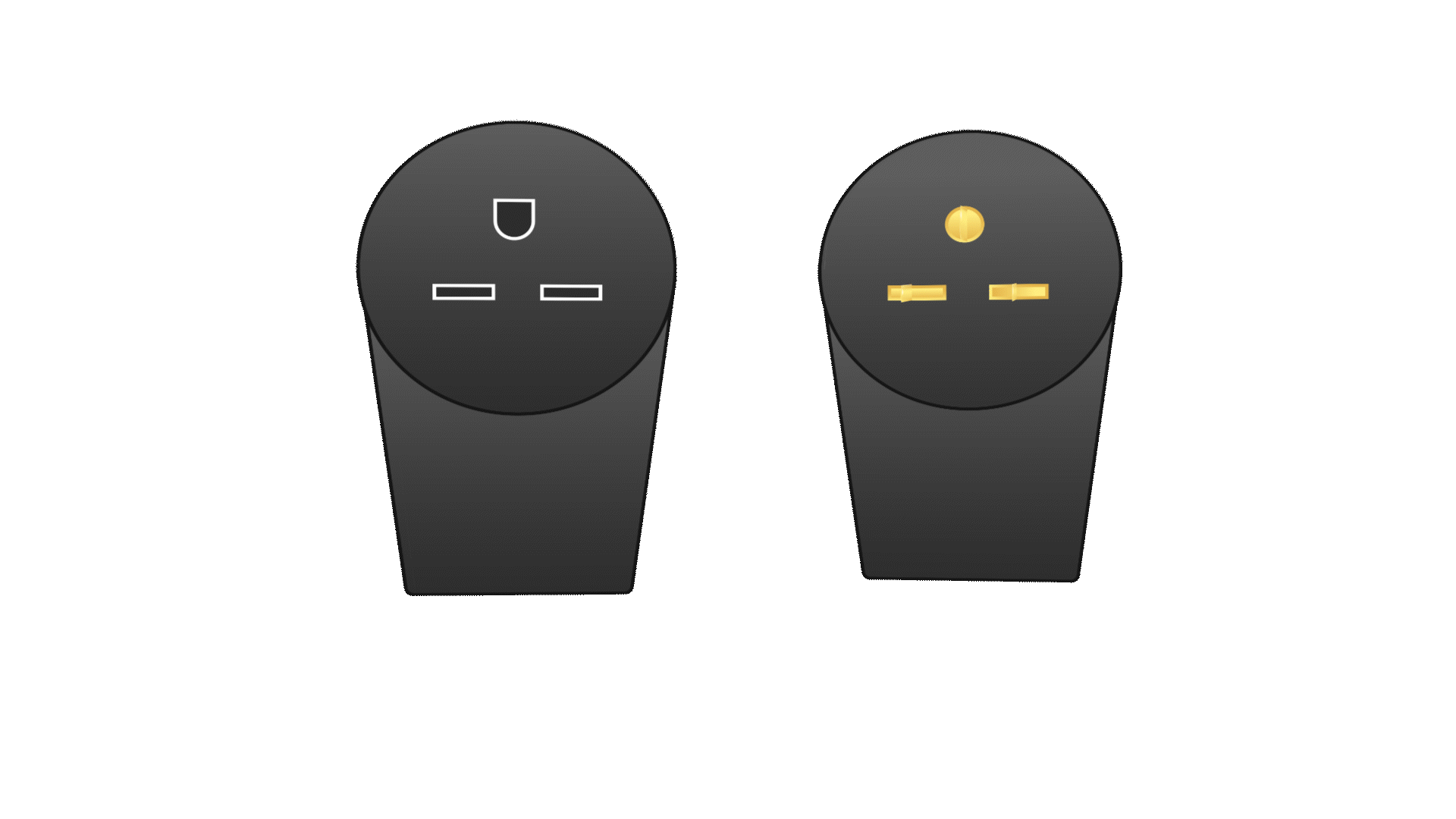

NEMA 6-30
250V 30 AMP
250V 30 AMP
Wiring:
2 hot, 1 ground
Commonly used with:
Medium-duty appliances, welders (e.g., older electric dryers without neutral)

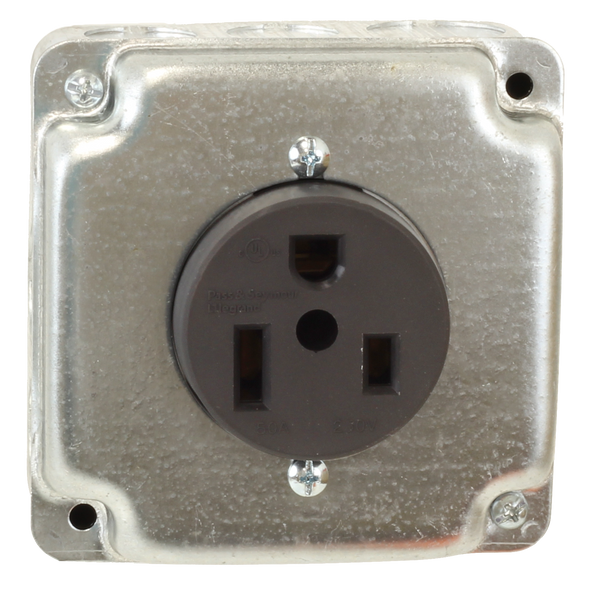

NEMA 6-50
250V 50 AMP
250V 50 AMP
Wiring:
2 hot, 1 ground
Commonly used with:
Welders, EV chargers (older), large shop tools

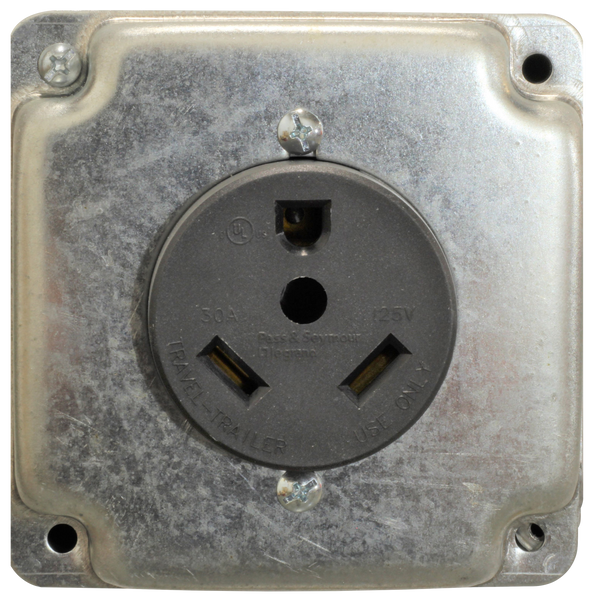

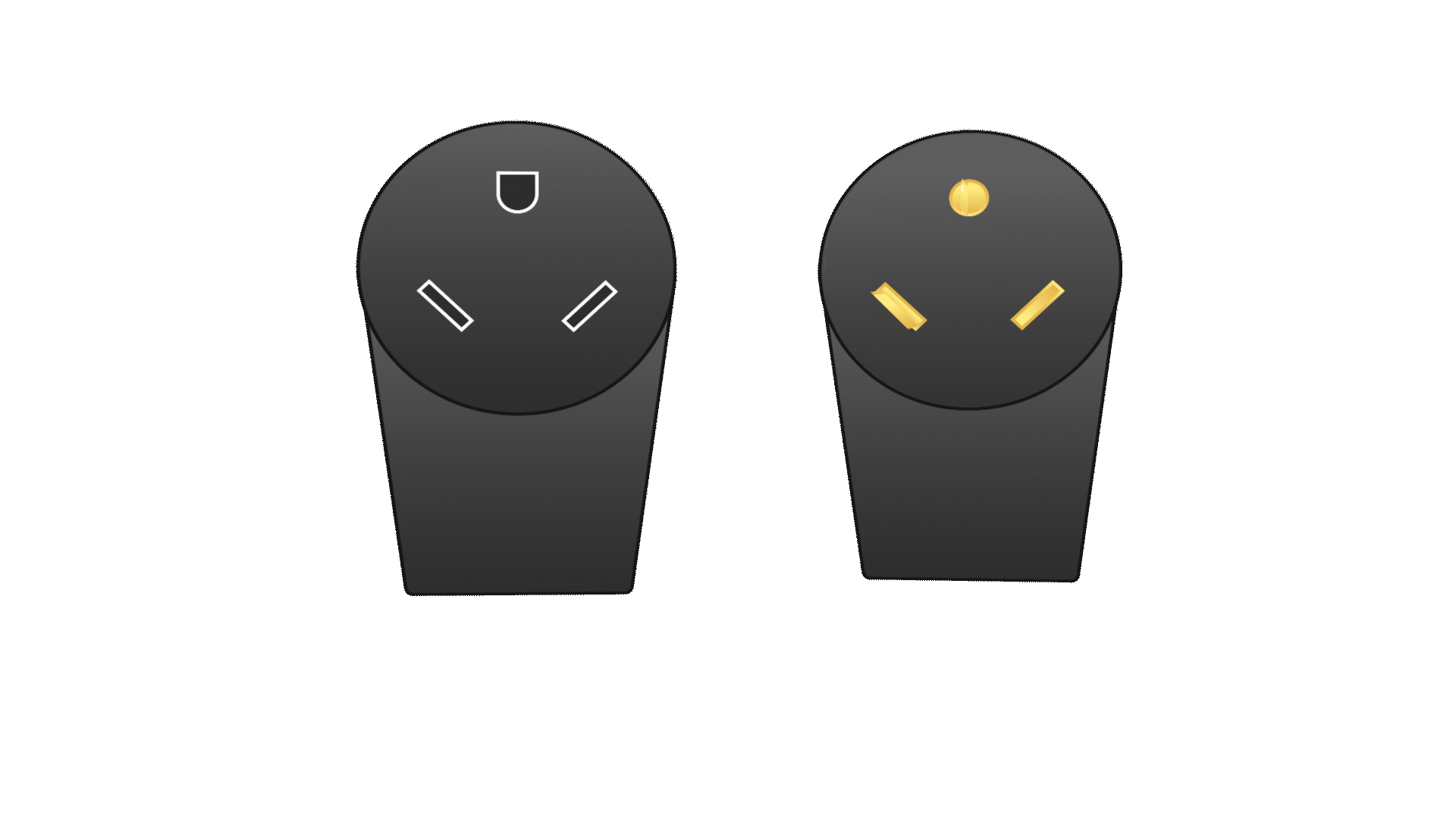

NEMA TT-30
125V 30 Amp
125V 30 Amp
Wiring:
1 hot, 1 neutral + ground
Commonly used with:
RV power (campgrounds)

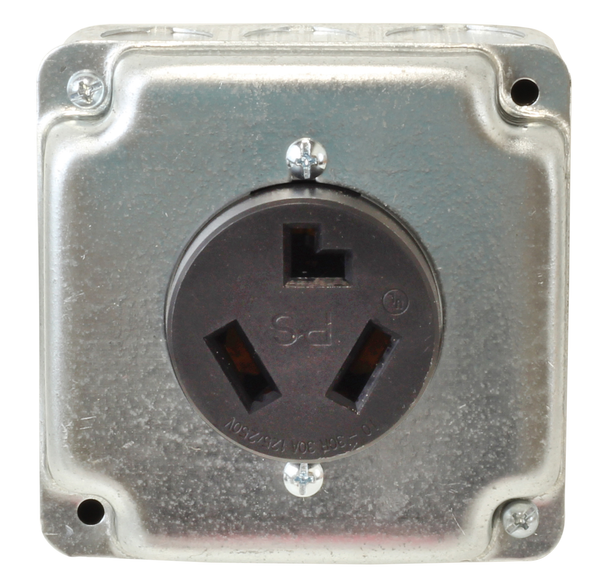

NEMA 10-30
125/250V 30 AMP
125/250V 30 AMP
Wiring:
2 hot, 1 neutral
Commonly used with:
Old electric dryers (no ground)

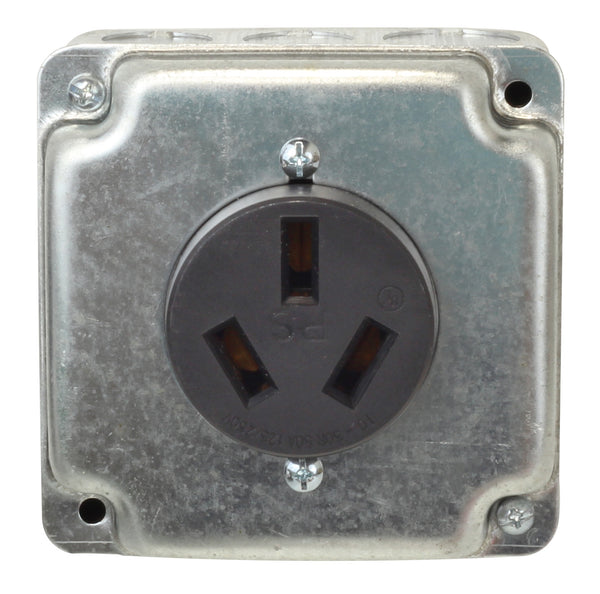

NEMA 10-50
125/250V 50 Amp
125/250V 50 Amp
Wiring:
2 hot, 1 neutral
Commonly used with:
Old ovens, welders, stoves (no ground)

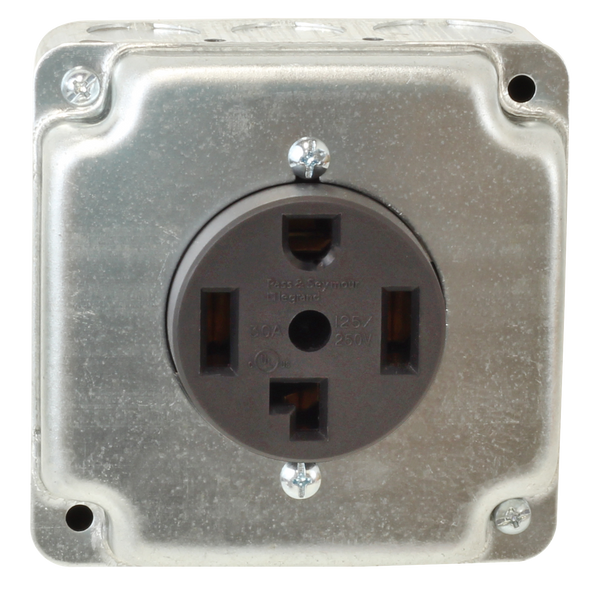

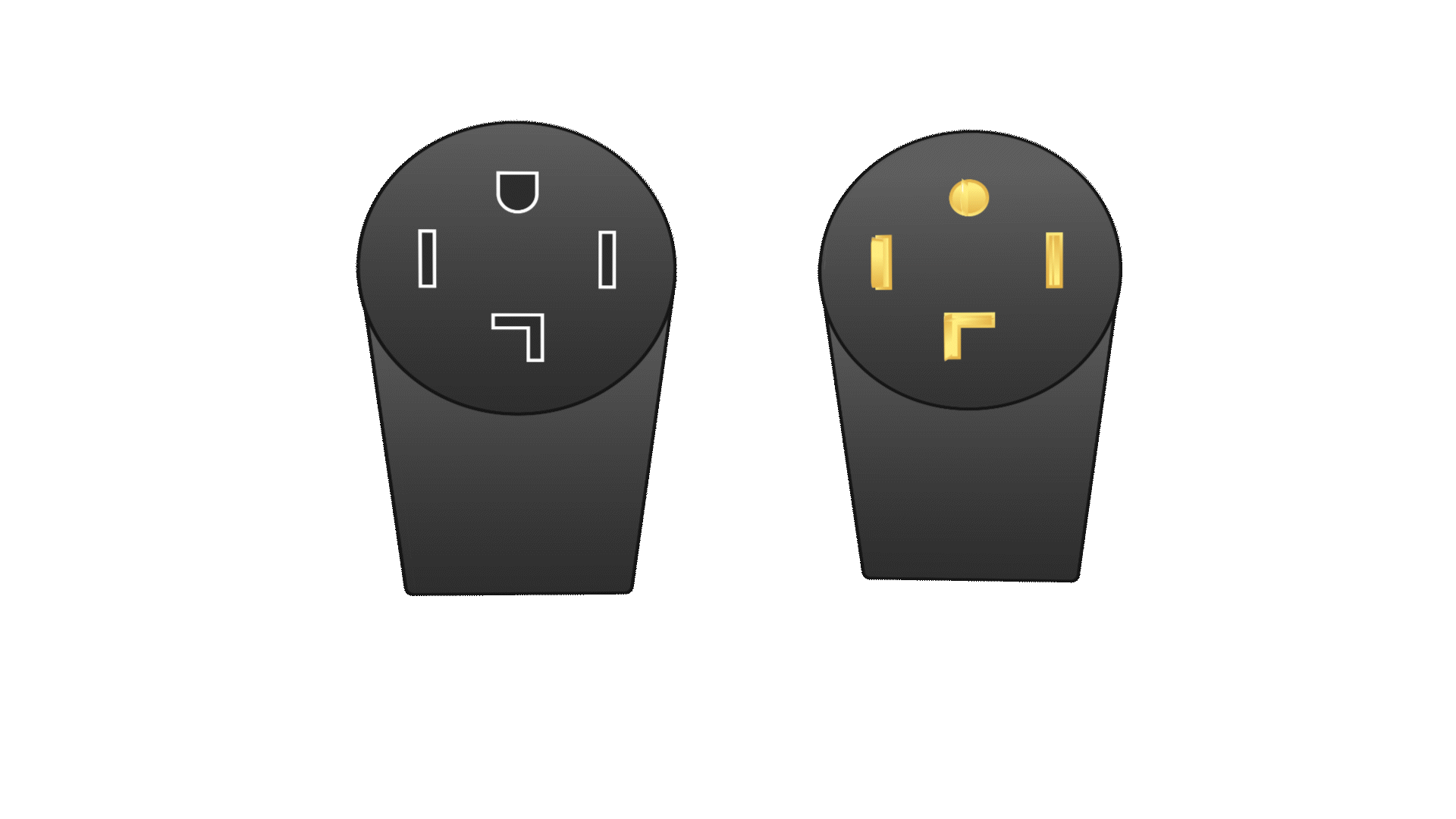

NEMA 14-30
125/250V 30 AMP
125/250V 30 AMP
Wiring:
2 hot, 1 neutral + ground
Commonly used with:
Modern Dryers

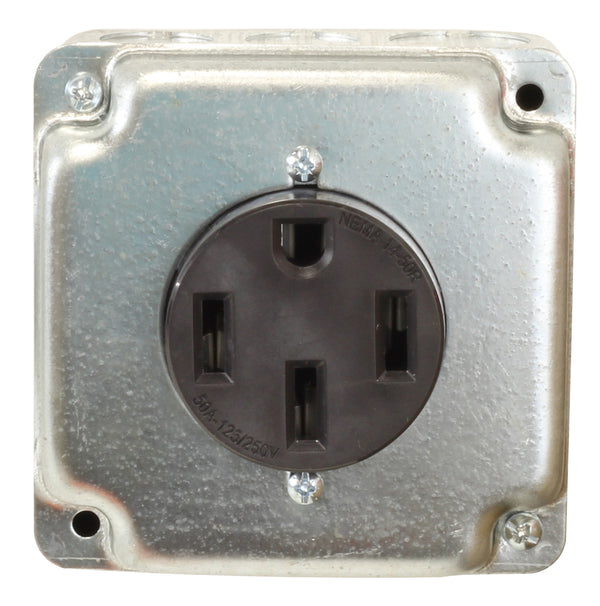

NEMA 14-50
125/250V 50 AMP
125/250V 50 AMP
Wiring:
2 hot, 1 neutral + ground
Commonly used with:
Ranges, EVs, RVs
Locking Plugs
Commonly used in industrial settings.

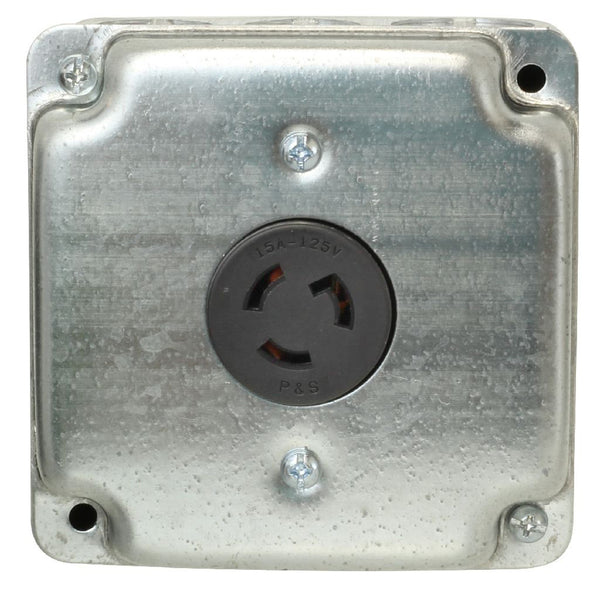

NEMA L5-15
125V 15 AMP
125V 15 AMP
Wiring:
1 hot, 1 neutral + ground
Commonly used with:
Restaurant lighting
Light-duty 120V industrial gear

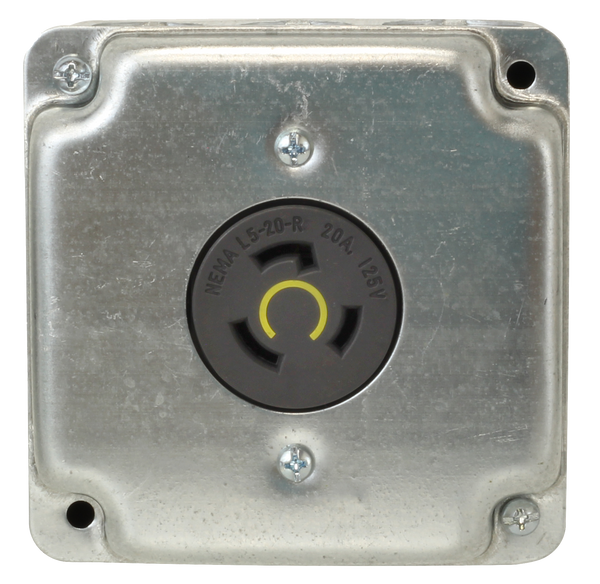

NEMA L5-20
125V 20 AMP
125V 20 AMP
Wiring:
1 hot, 1 neutral + ground
Commonly used with:
120V tools, lighting, AV gear

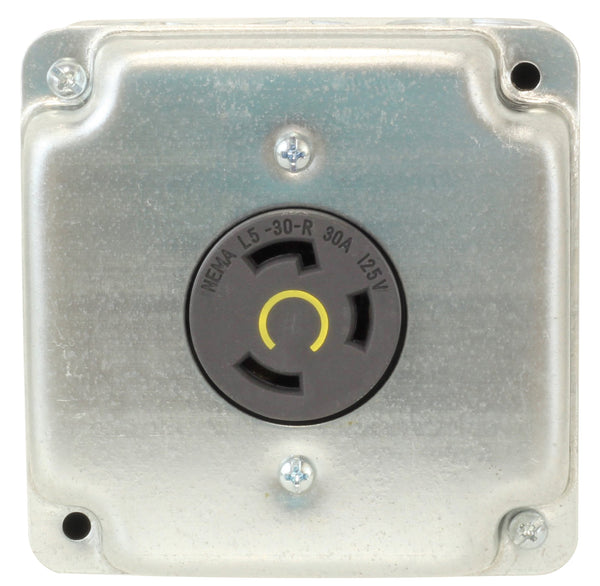

NEMA L5-30
125V 30 AMP
125V 30 AMP
Wiring:
1 hot, 1 neutral + ground
Commonly used with:
RVs, generators

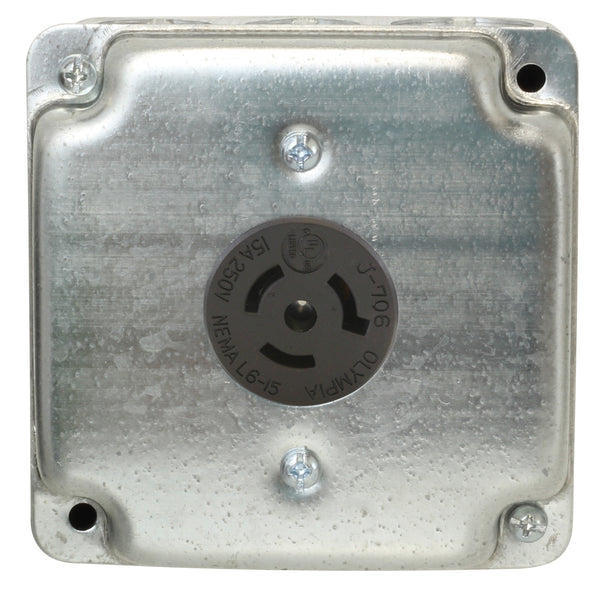

NEMA L6-15
250V 15 AMP
250V 15 AMP
Wiring:
2 hot, ground
Commonly used with:
Small 240V motors, tools

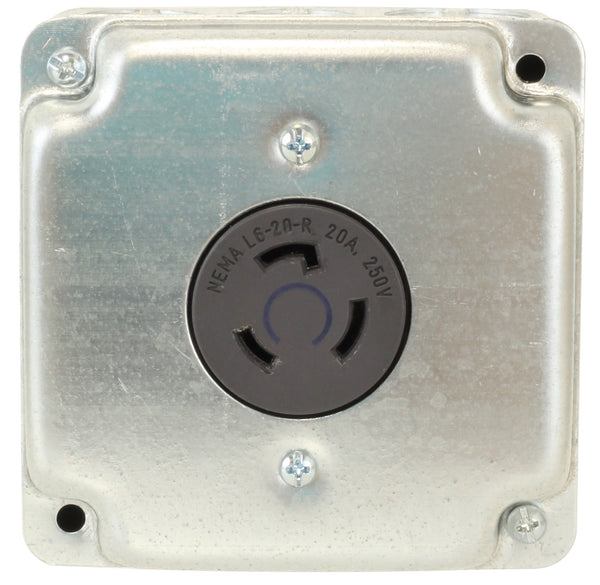

NEMA L6-20
250V 20 AMP
250V 20 AMP
Wiring:
2 hot, ground
Commonly used with:
HVAC, compressors

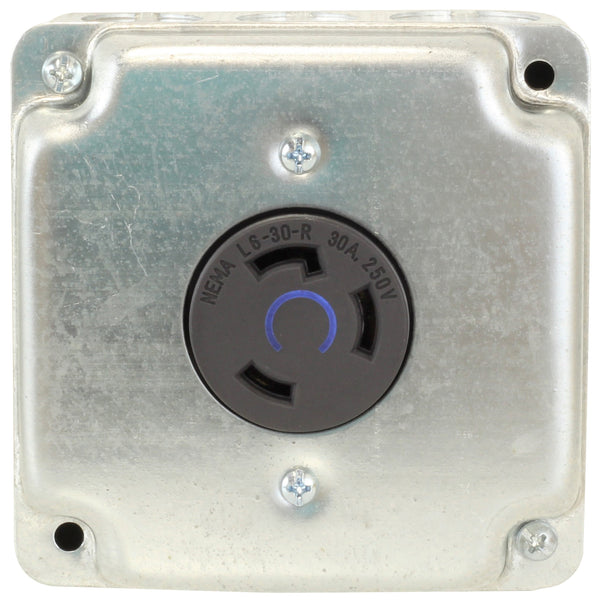

NEMA L6-30
250V 30 AMP
250V 30 AMP
Wiring:
2 hot, ground
Commonly used with:
Generators, Welders, heavy equipment

NEMA L7-15
277V 15 AMP
277V 15 AMP
Wiring:
1 hot, 1 neutral + ground
Commonly used with:
Lighting

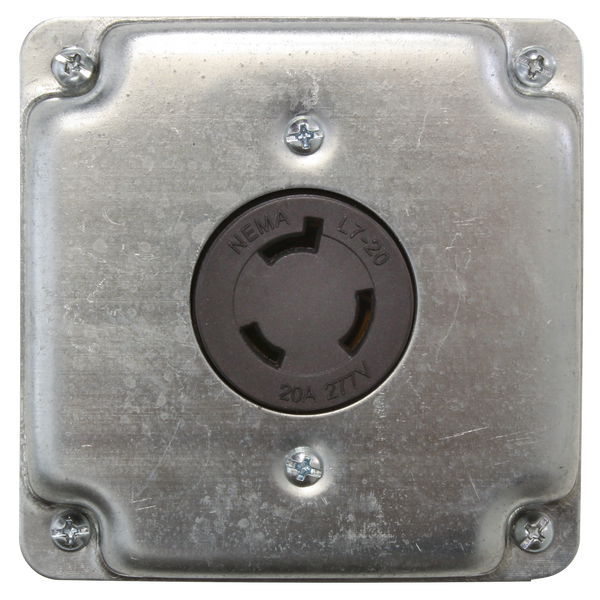

NEMA L7-20
277V 20 AMP
277V 20 AMP
Wiring:
1 hot, 1 neutral + ground
Commonly used with:
Commercial lighting

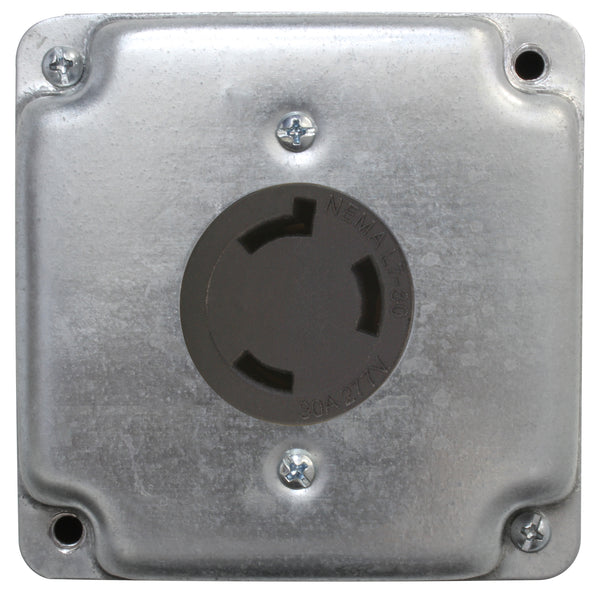

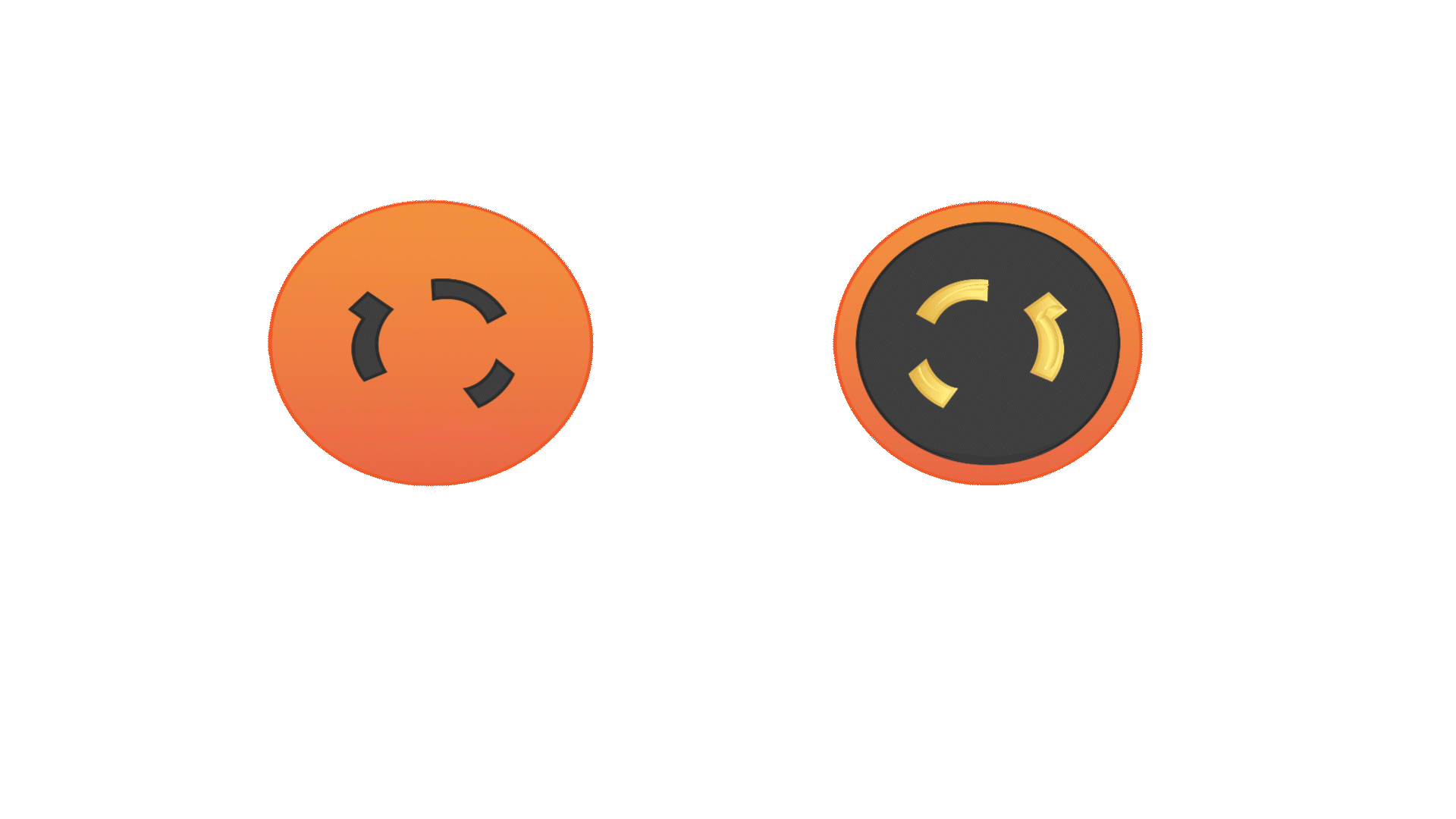

NEMA L7-30
277V 30 AMP
277V 30 AMP
Wiring:
1 hot, 1 neutral + ground
Commonly used with:
Larger lighting loads

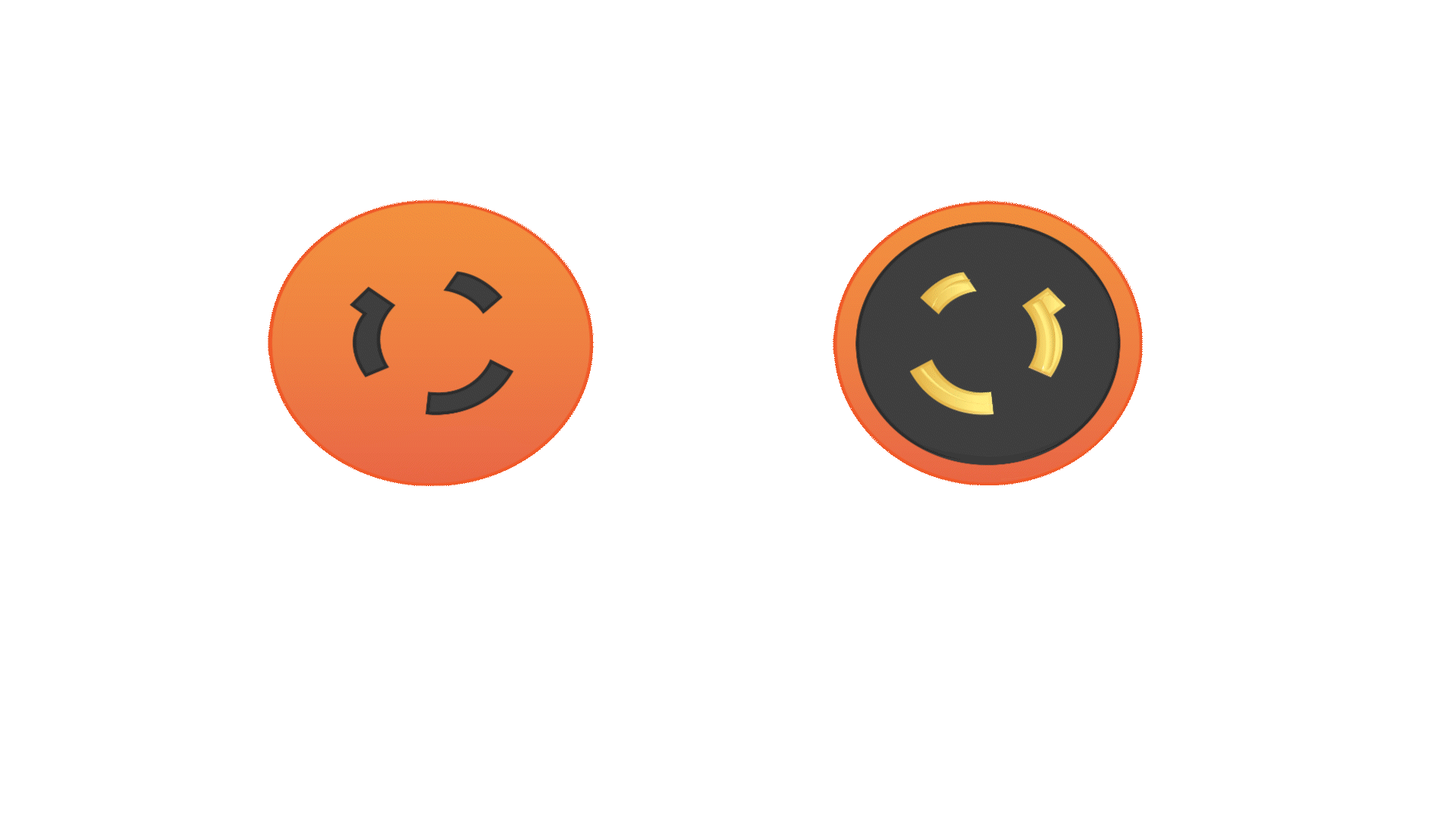

NEMA L8-20
480V 20 AMP
480V 20 AMP
Wiring:
2 hot, ground
Commonly used with:
Motors, pumps (480V 1-phase)
(No plug connections at this time)
NEMA L10-20
125/250V 20 AMP
125/250V 20 AMP
Wiring:
2 hot, 1 neutral
Commonly used with:
Rare/obsolete—older devices, legacy industrial gear
(No plug connections at this time)

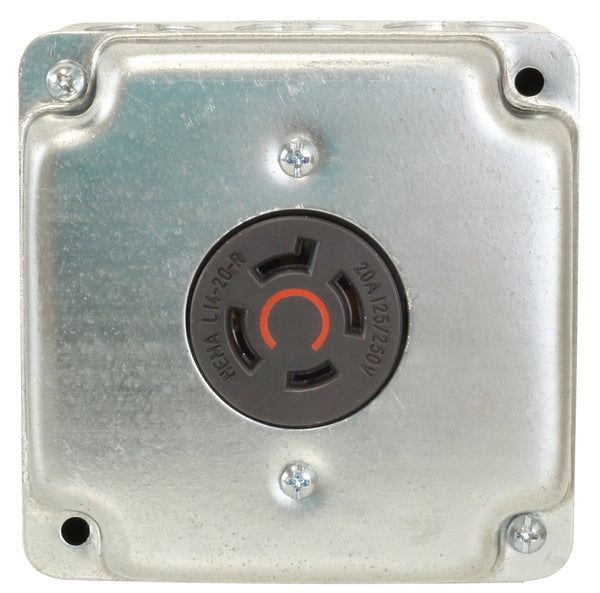

NEMA L14-20
125/250V 20 AMP
125/250V 20 AMP
Wiring:
2 hot, 1 neutral + ground
Commonly used with:
Small generators, transfer switches, split-phase power

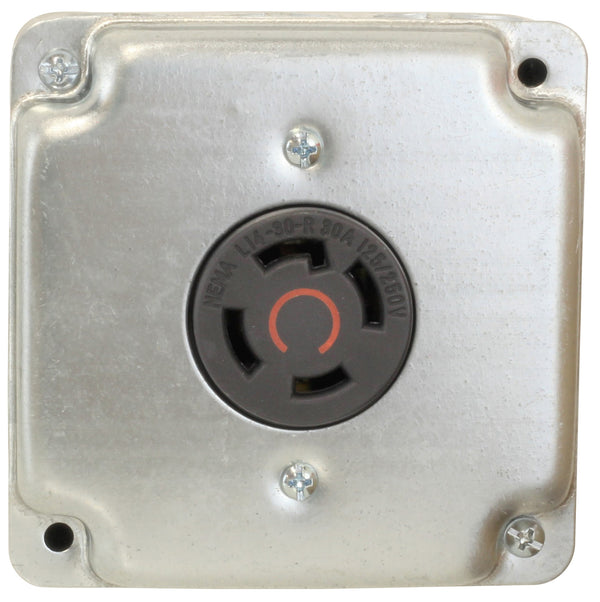

NEMA L14-30
125/250V 30 AMP
125/250V 30 AMP
Wiring:
2 hot, 1 neutral + ground
Commonly used with:
Residential backup generators, transfer panels

NEMA L15-20
250V 20 AMP
250V 20 AMP
Wiring:
3 hot, ground
Commonly used with:
3-phase motors, pumps, industrial equipment

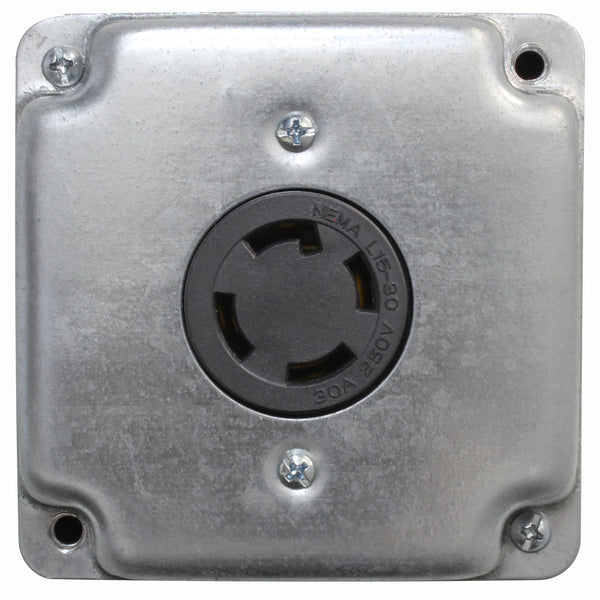

NEMA L15-30
250V 30 AMP
250V 30 AMP
Wiring:
3 hot, ground
Commonly used with:
Medium-duty 3-phase machinery, HVAC units

NEMA L16-20
480V 20 AMP
480V 20 AMP
Wiring:
3 hot, ground
Commonly used with:
High-voltage industrial motors, tools

NEMA L16-30
480V 30 AMP
480V 30 AMP
Wiring:
1 hot, 1 neutral + ground
Commonly used with:
Heavy-duty machinery in industrial plants

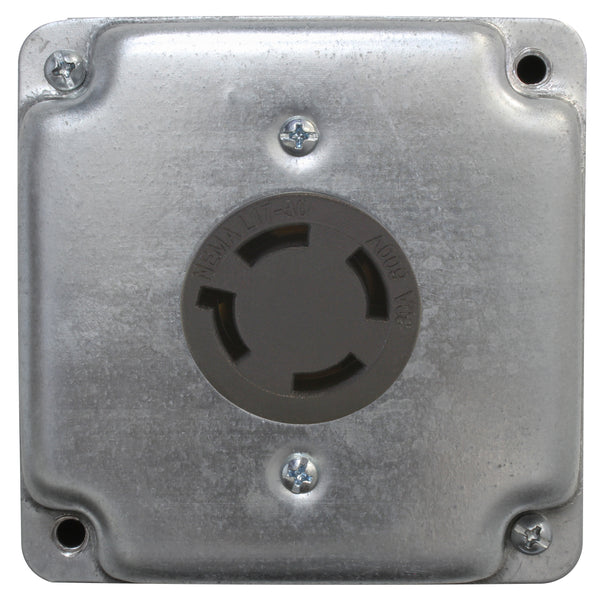

NEMA L17-30
600V 30 AMP
600V 30 AMP
Wiring:
3 hot, ground
Commonly used with:
Very high voltage industrial loads, mills

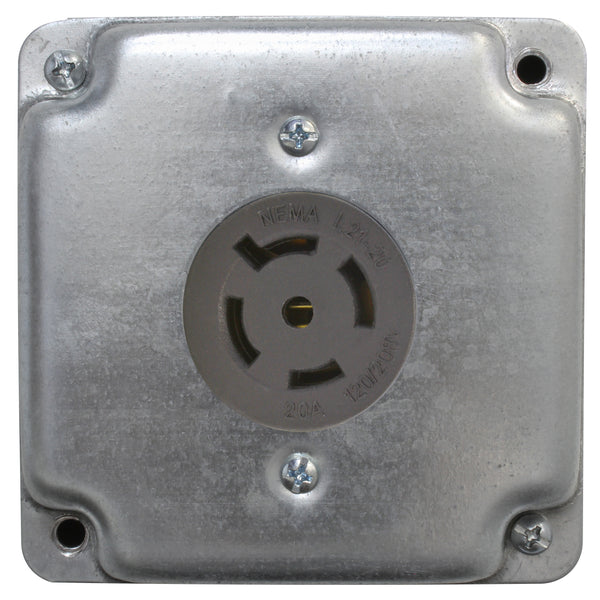

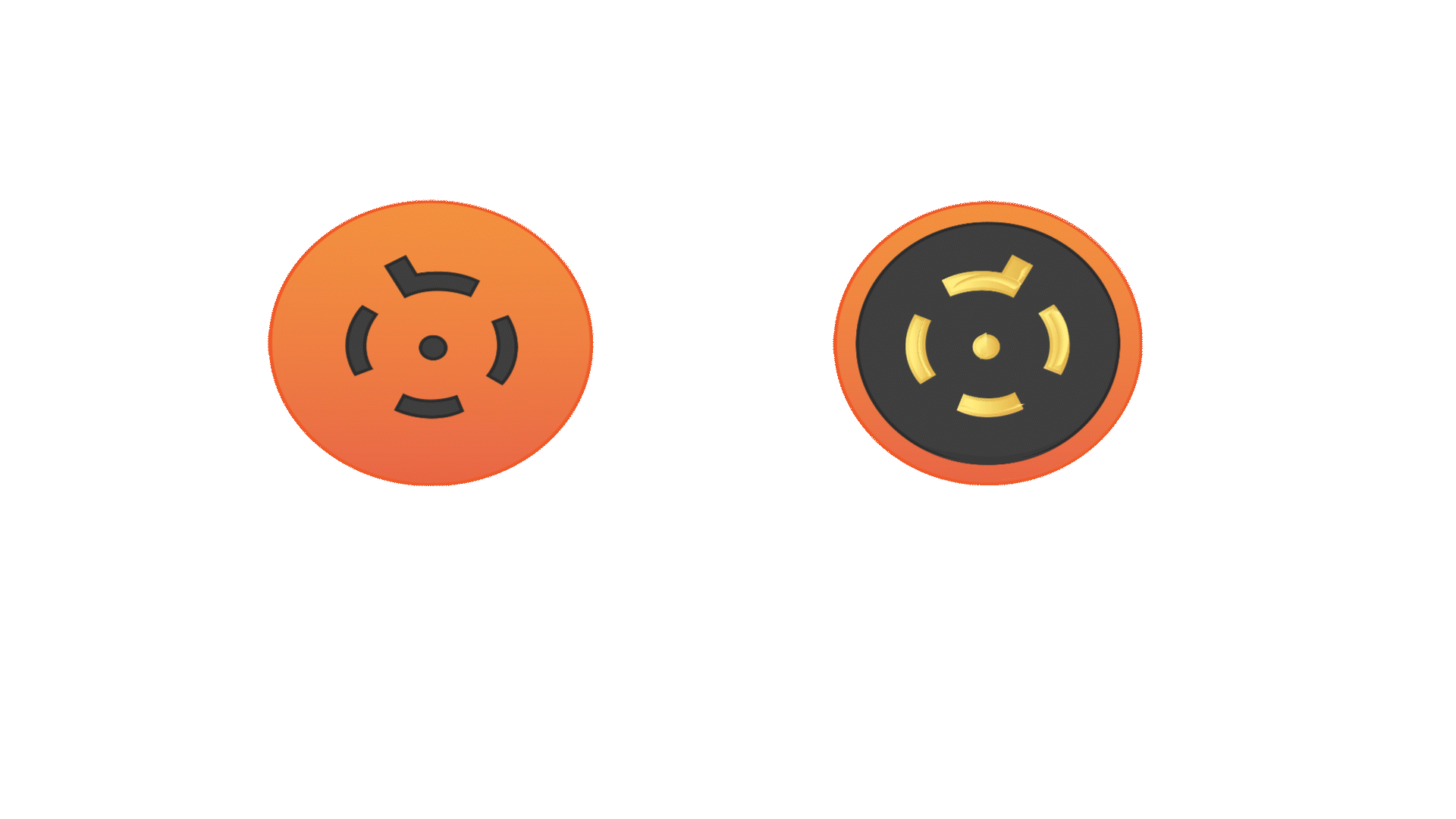

NEMA L21-20
120/208V 20 AMP
120/208V 20 AMP
Wiring:
3 hot, 1 neutral + ground
Commonly used with:
Wye-connected systems, commercial panelboards, event production

NEMA L21-30
120/208V 30 AMP
120/208V 30 AMP
Wiring:
3 hot, 1 neutral + ground
Commonly used with:
3-phase power distribution, AV racks, UPS systems

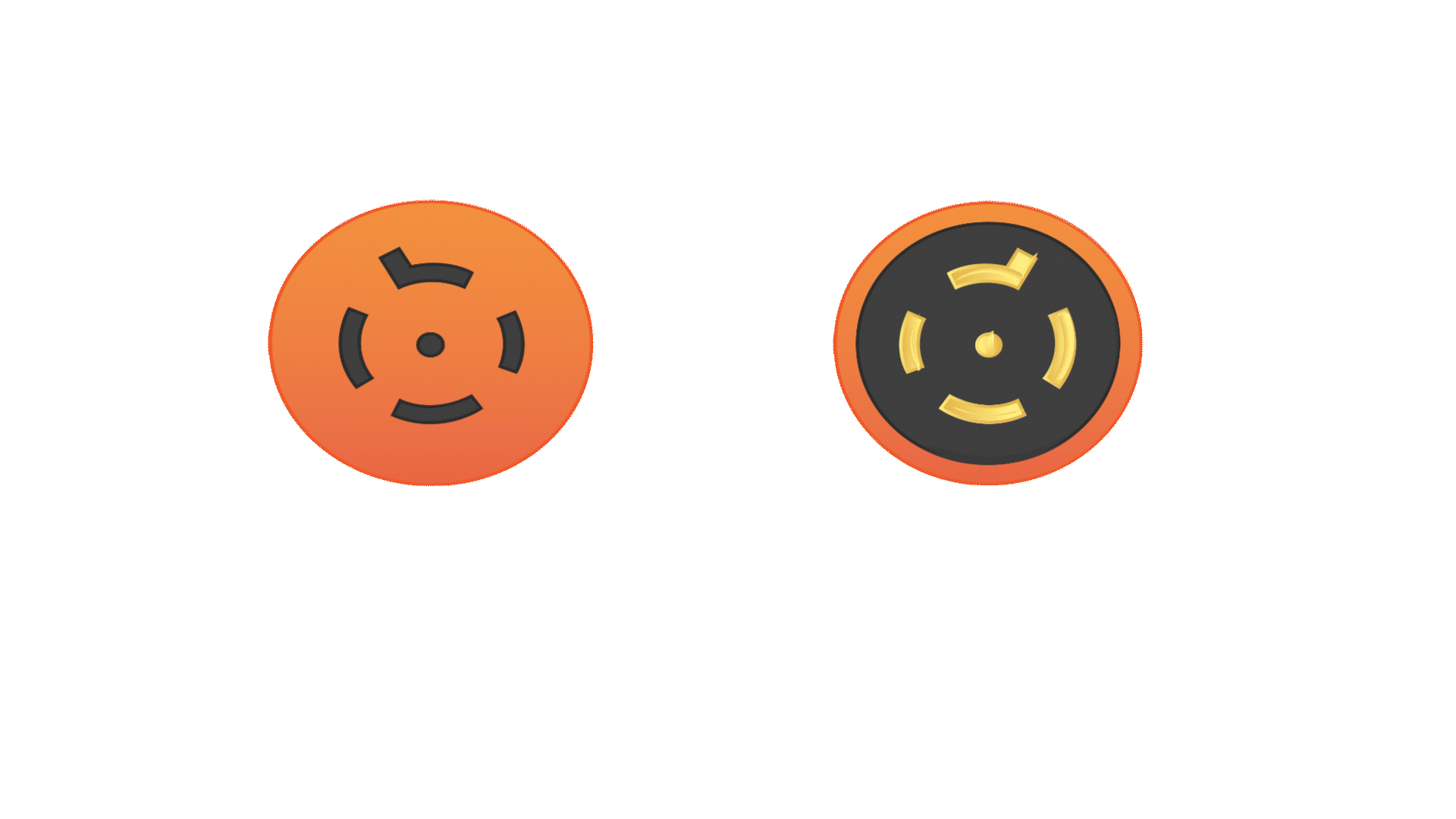

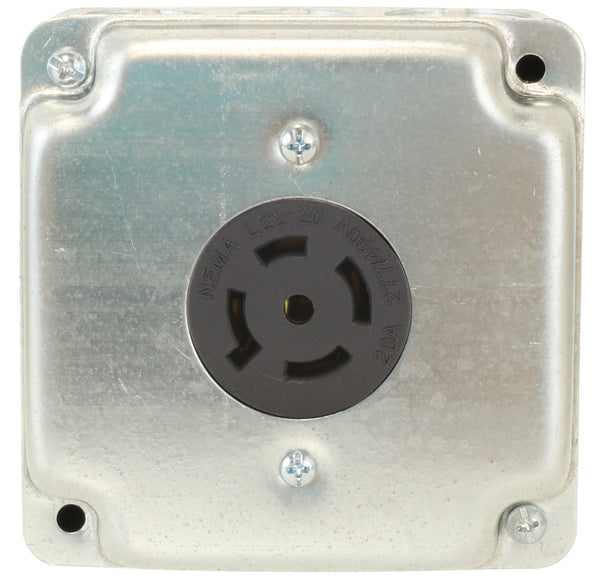

NEMA L22-20
277/480V 20 AMP
277/480V 20 AMP
Wiring:
3 hot, 1 neutral + ground
Commonly used with:
Lighting systems, high-voltage HVAC
(No plug connections at this time)

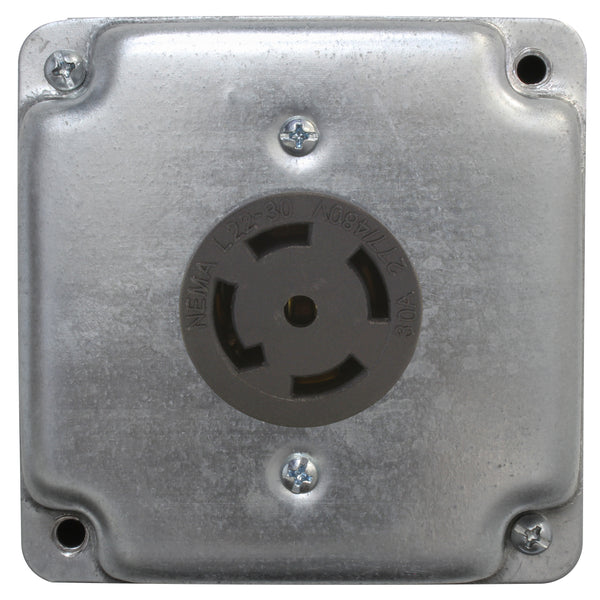

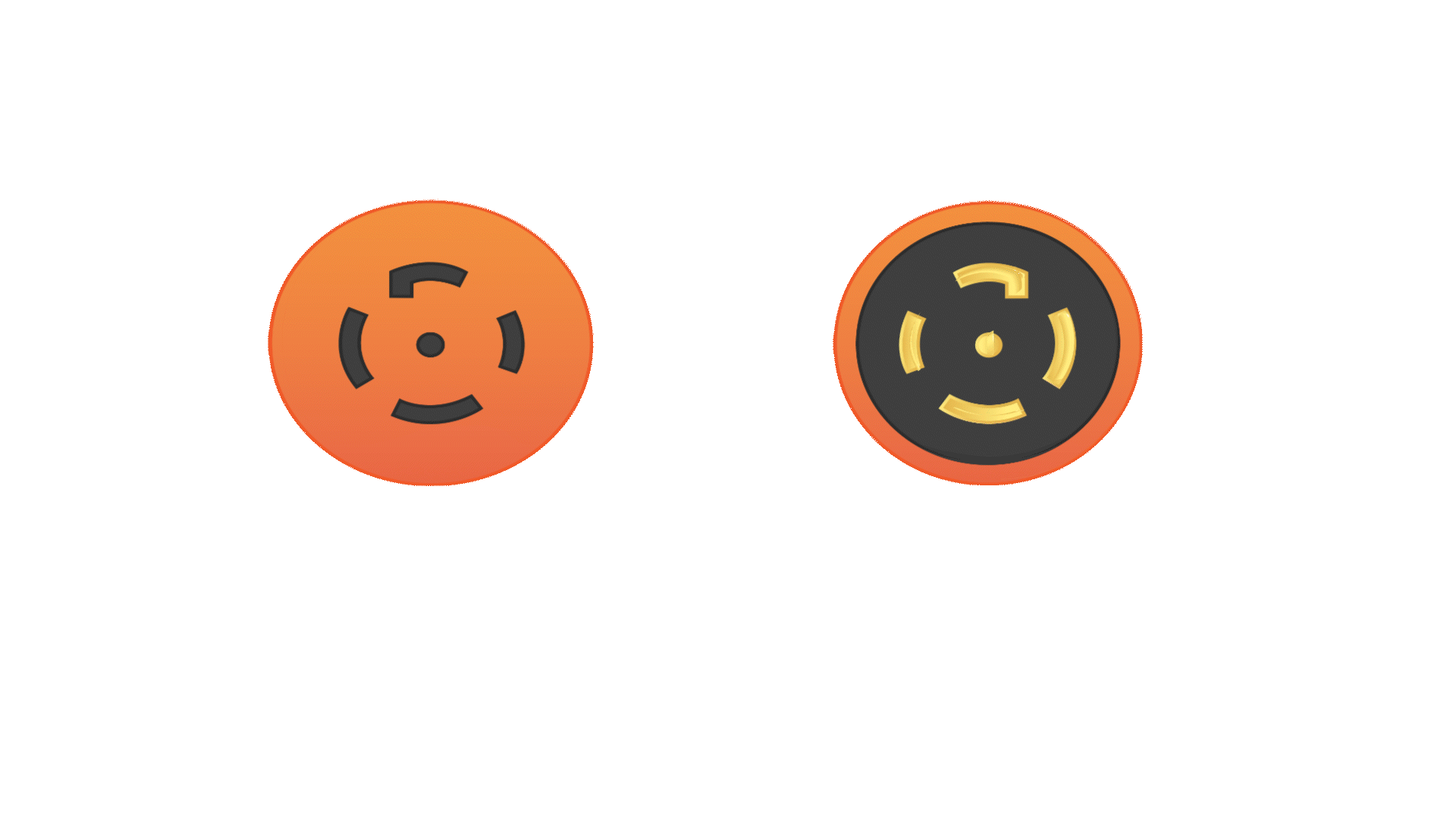

NEMA L22-30
227/480V 30 AMP
227/480V 30 AMP
Wiring:
3 hot, 1 neutral + ground
Commonly used with:
Commercial buildings, large HVAC and motors

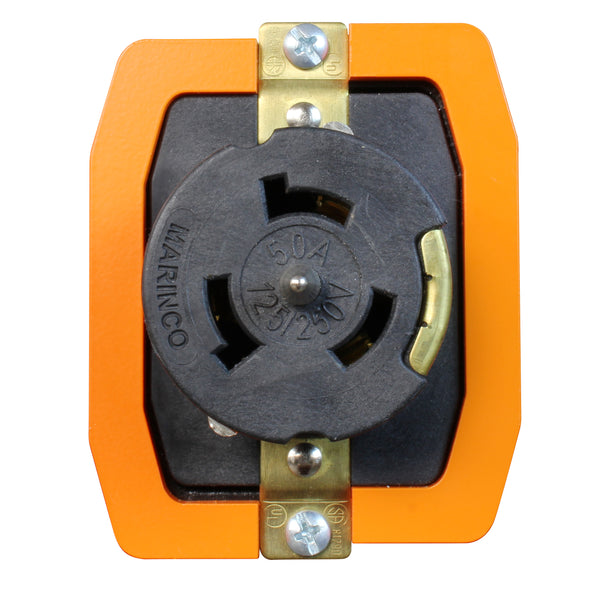

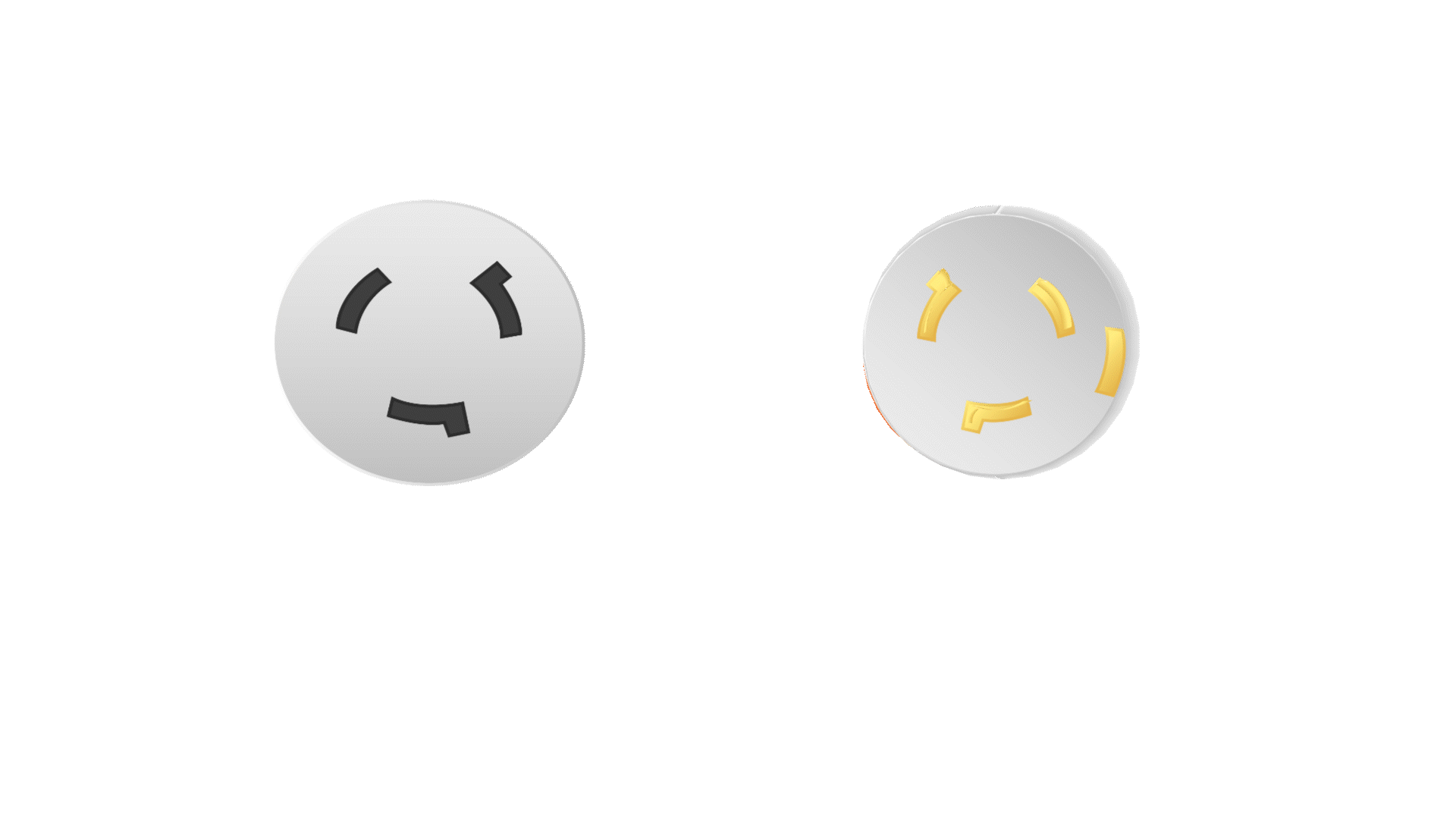

SS2-50
125/250V 50 AMP
125/250V 50 AMP
Wiring:
2 hot, 1 neutral + ground
Commonly used with:
Shore power for RVs, boats, mobile trailers
