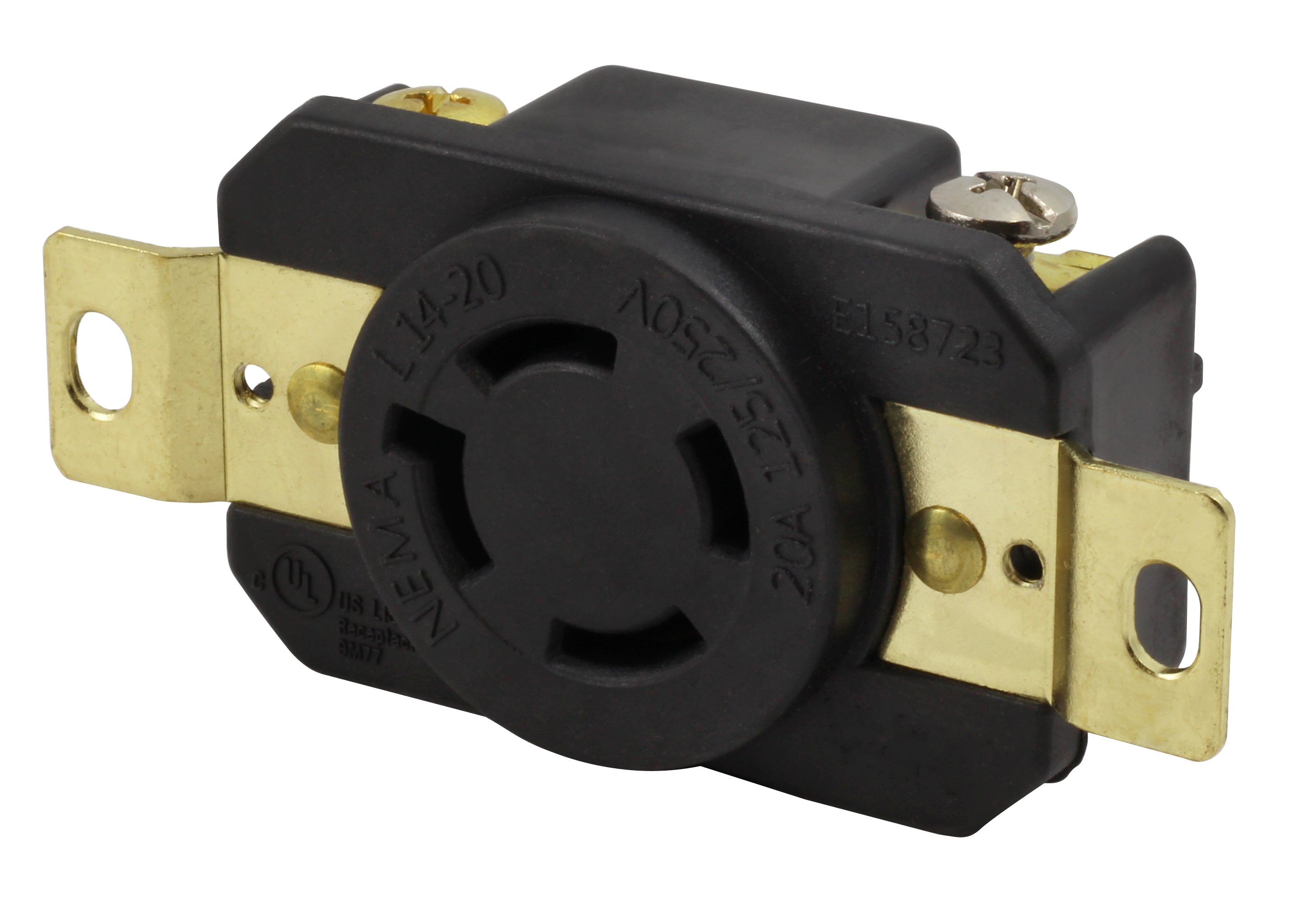

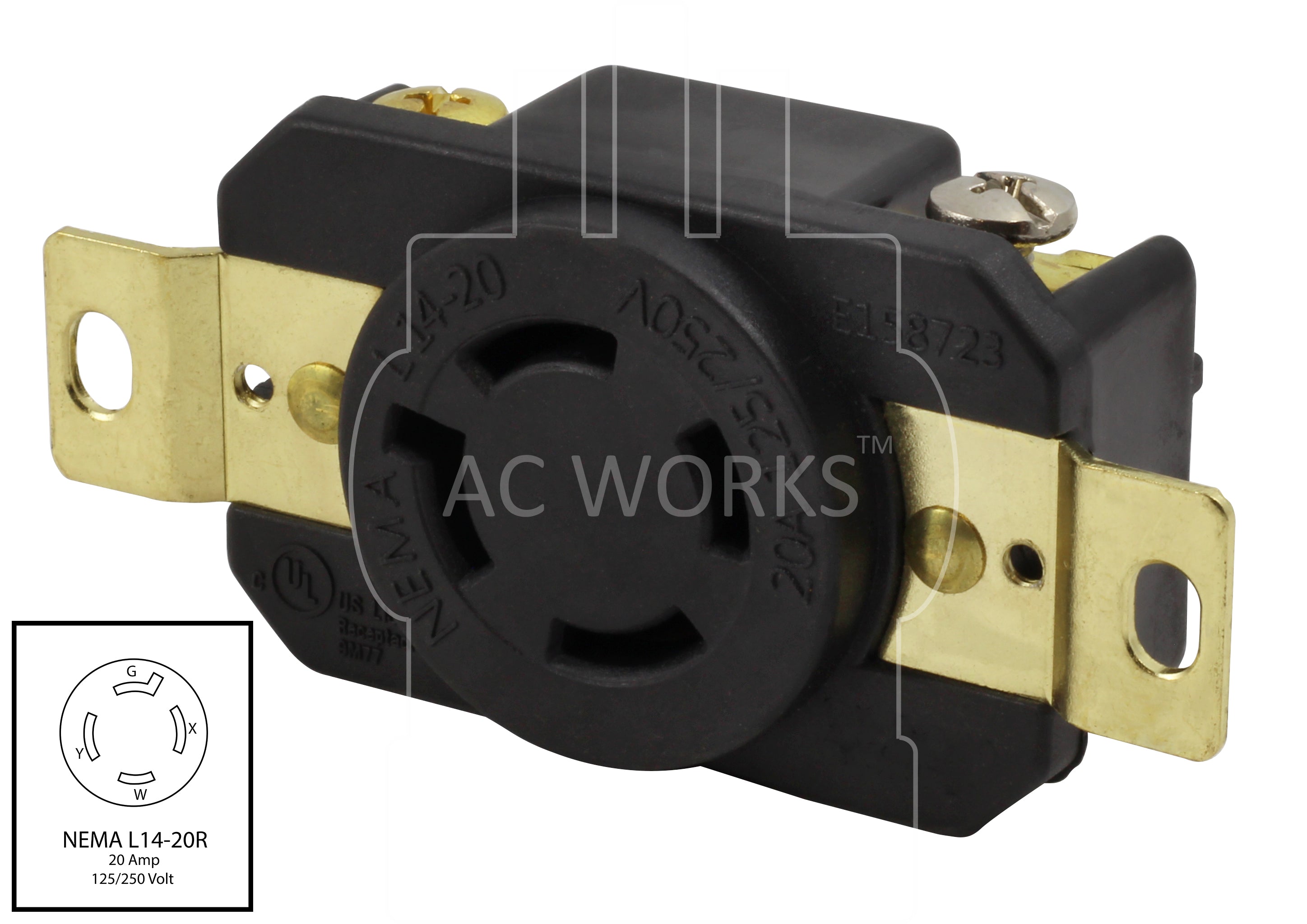

AC WORKS® [FML1420R] 20A 125/250V NEMA L14-20R Flush Mount Locking Industrial Grade Receptacle

  • $10.99 USD
  • Save $8 USD


This AC WORKS® brand female outlet receptacle features a 3-pole, 4-wire grounding system.  It is a NEMA L14-20R, 20 Amp, 125/250 Volt flush mount locking outlet.  This product is installed into your generator to repair or change your generator receptacle.  It features chemical and impact-resistant housing along with a quick installation process.  The FML1420R is UL and C-UL certified.  Included with your purchase is a 1-year limited warranty.

Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire for 30 Amp

Features

  • NEMA L14-20R, 20 Amp, 125/250 Volt
  • Flush Mount Locking Receptacle
  • 3-Pole and 4-Wire Grounding
  • For Use with a Generator
  • cULus E237606

Common Uses

  • DIY
