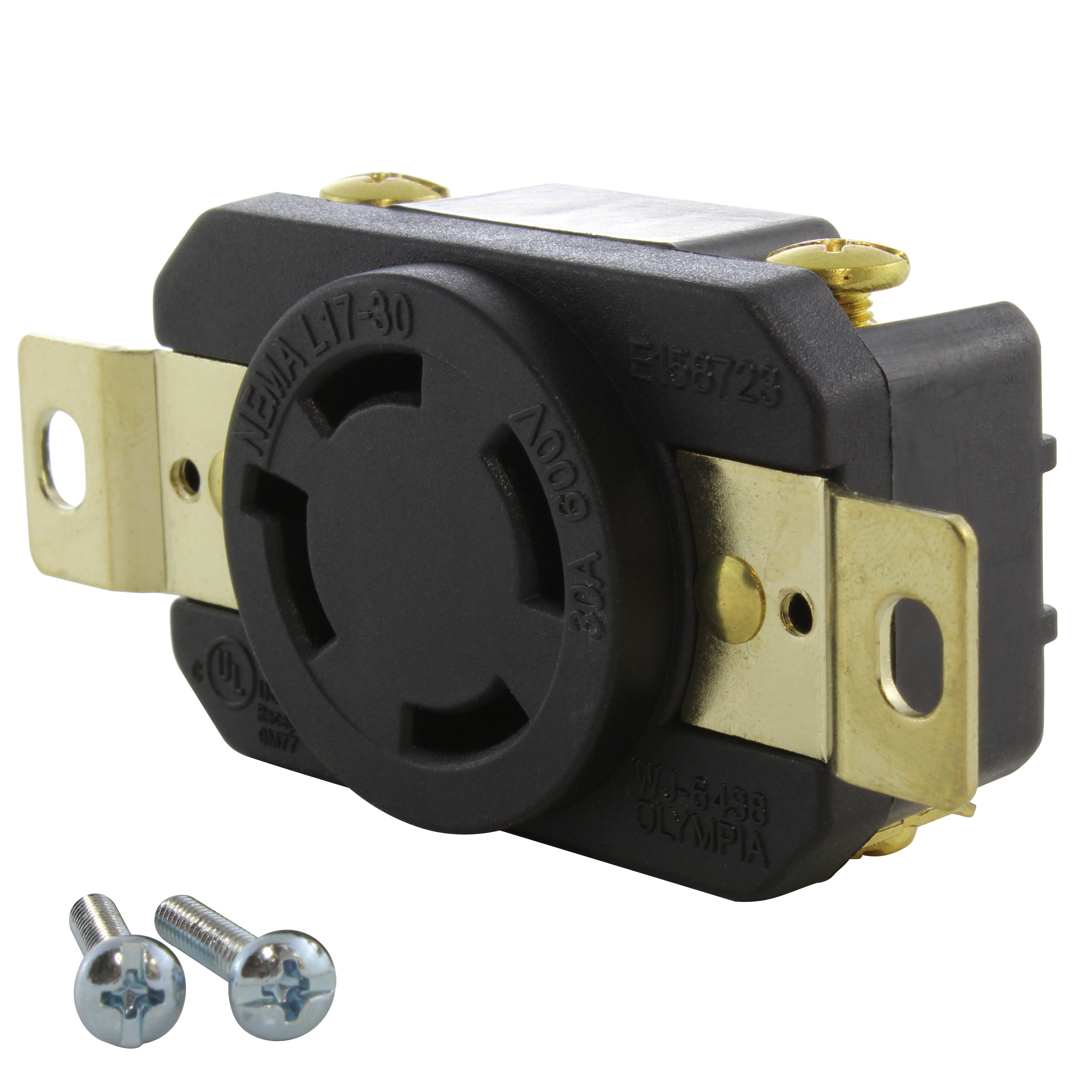

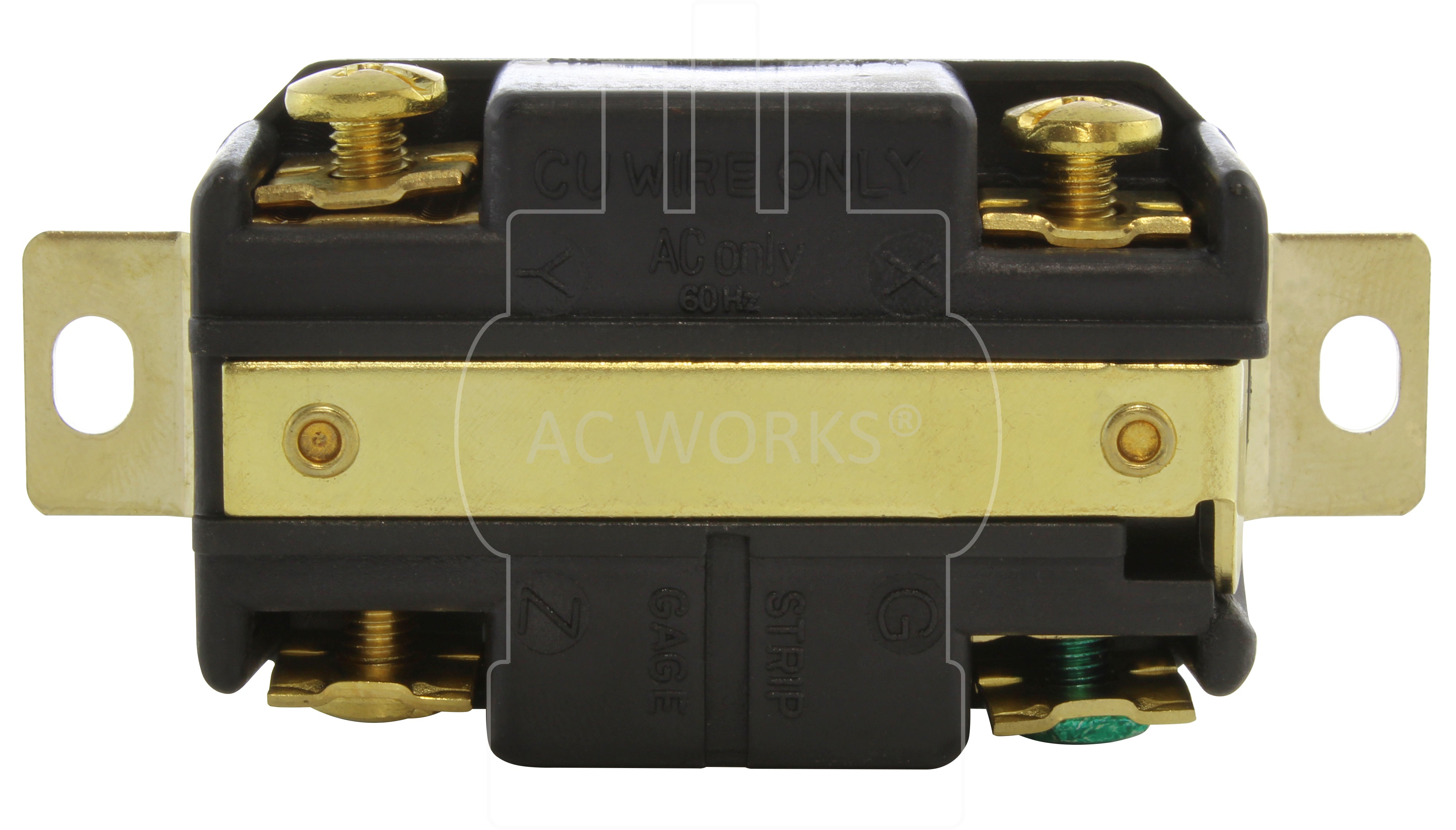

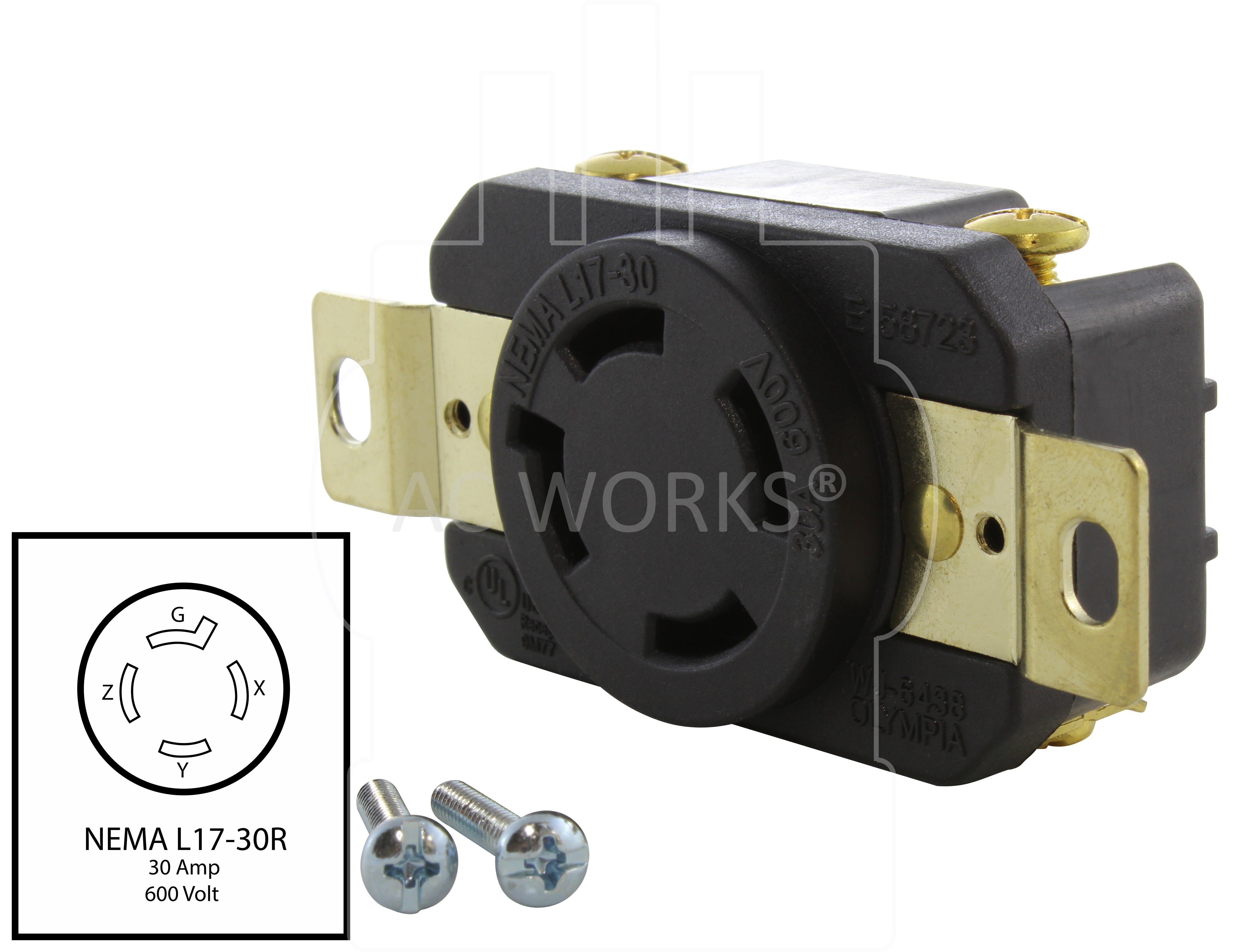

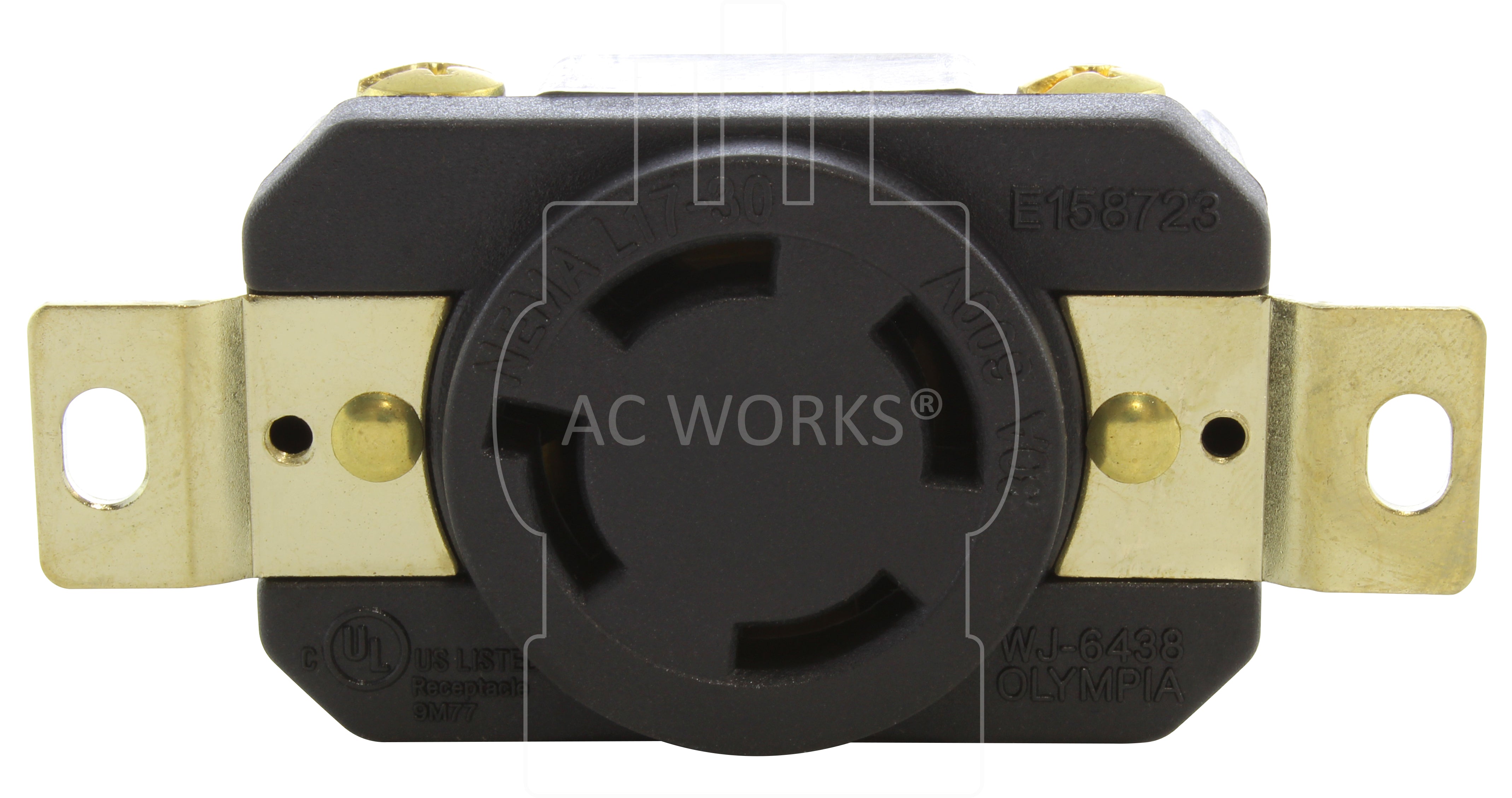

AC WORKS® [FML1730R] 30A, 600V, NEMA L17-30R Flush Mount Locking Industrial Grade Receptacle
This AC WORKS® brand female receptacle features a 3-pole, 4-wire grounding system. It is a NEMA L17-30R, 3-Phase, 30 Amp, 600 Volt flush mount locking outlet. This product is installed to fix a receptacle. The receptacle features chemical and impact-resistant housing along with a quick installation process. The FML1730R is UL and C-UL certified. Included with your purchase is a 1-year limited warranty.
Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire for 30 Amp
Features
- NEMA L17-30R, 30 Amp, 600Volt
- Max 31,140 Watts
- Flush Mount Locking Receptacle
- 3-Pole, 4-Wire Grounding
- Locking Industrial Grade Receptacle
- cULus E237606
Common Uses
- DIY
Downloads
AC WORKS® Brand Limited Warranty
