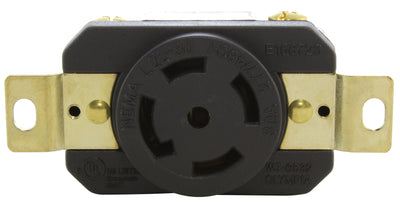

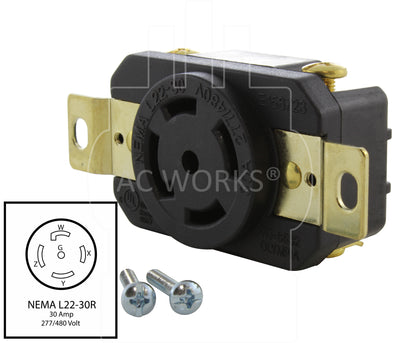

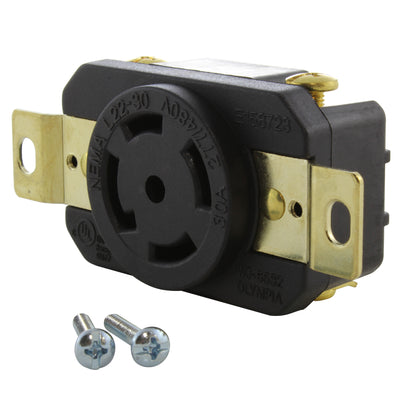

This AC WORKS® brand female receptacle features a 4-pole, 5-wire grounding system.  It is a NEMA L22-30R, 30 Amp, 277/480 Volt flush mount locking outlet.  This product is installed to repair or change a receptacle.  It features chemical and impact-resistant housing along with a quick installation process.  The FML2230R is UL and C-UL certified.  Included with your purchase is a 1-year limited warranty.

Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire for 30 Amp

Features

• NEMA L22-30R, 30 Amp, 277/480 Volt
• Max 24,912 Watts
• Flush Mount Locking Receptacle
• 4-Pole and 5-Wire Grounding
• Popular for Use in Industrial and Warehouse Equipment
• cULus E237606
• Made of PBT V-0 (Thermoplastic)

Common Uses

• DIY
