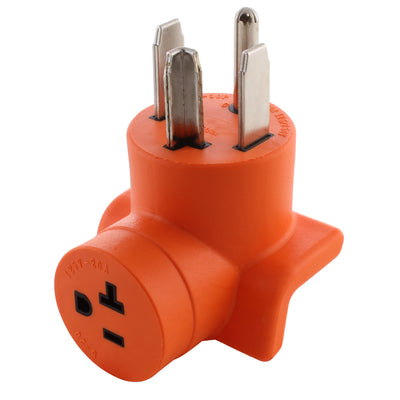

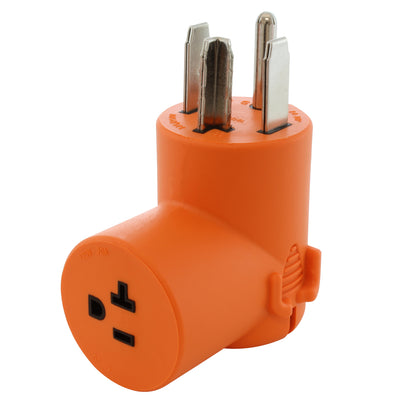

The AC WORKS® AD1430520 is a compact, heavy-duty adapter that allows you to connect compatible 125 Volt household appliances to a NEMA 14-30 dryer receptacle.

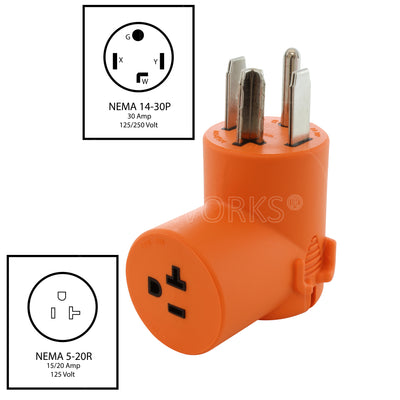

This adapter features a NEMA 14-30P, 30 Amp, 125/250 Volt, 4-prong male plug and a NEMA 5-20R, 20 Amp, 125 Volt T-blade female connector. The female outlet accepts compatible NEMA 5-15P and 5-20P household plugs.

The adapter features nickel-plated pins and terminals to help resist corrosion, a built-in power indicator light, and a maximum rated output of 2,500 Watts.

Features

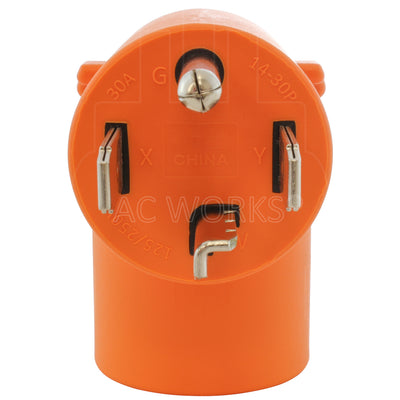

• NEMA 14-30P, 30 Amp, 125/250 Volt, 4-prong dryer male plug

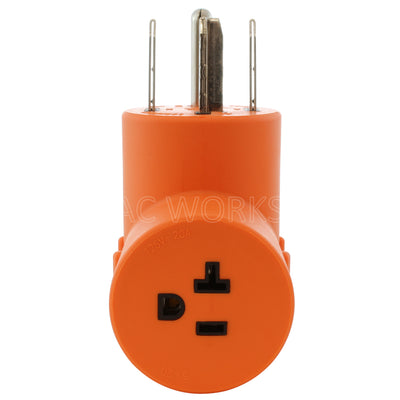

• NEMA 5-20R, 20 Amp, 125 Volt T-blade female connector
• Accepts compatible NEMA 5-15P and 5-20P plugs

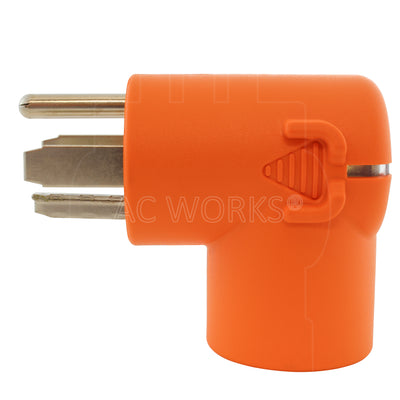

• Compact, heavy-duty molded construction
• Nickel-plated pins and terminals for corrosion resistance

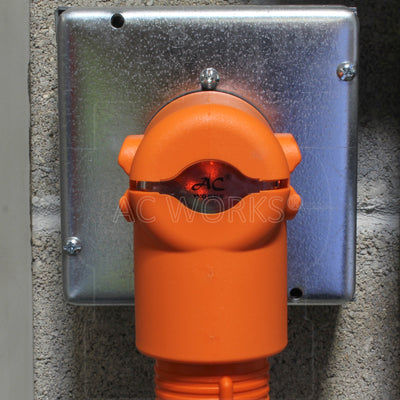

• Built-in power indicator light
• Maximum rated output: 2,500 Watts
• 5-year limited warranty

Common Applications

• Connecting compatible 125 Volt household appliances to a 4-prong dryer receptacle
• Powering compatible gas dryers and gas ranges requiring a standard 125 Volt connection
• Using a compatible 125 Volt device where a NEMA 14-30 receptacle is available

Important Compatibility Information

This adapter provides a 125 Volt connection from a compatible NEMA 14-30 receptacle. It does not provide a 240 Volt output through the household connector.

The adapter does not include built-in overcurrent protection for the 20 Amp outlet. Use appropriate downstream circuit protection and verify that the installation and connected equipment comply with applicable electrical requirements.

Promotions

Use coupon code B1430520G when purchasing the AC WORKS® AD1430520 (clearance model excluded) to receive an E520CB520 circuit breaker adapter for free. Add both products to your cart and enter the coupon code at checkout. Valid while supplies last.

The E520CB520 provides additional 20 Amp circuit breaker protection when used with a compatible connection.

Downloads

AD1430520 Product Specification Sheet

AC WORKS® Limited Warranty
