This AC WORKS® brand inlet wiring device is a heavy-duty power input connection device.  It is used for an industrial and commercial grade flange inlet.  This inlet works with 10 AWG (American Wire Gauge) copper wire and is commonly used for residential, transfer switches, cabins, and generators.  Included in your purchase is a 1-year limited warranty.

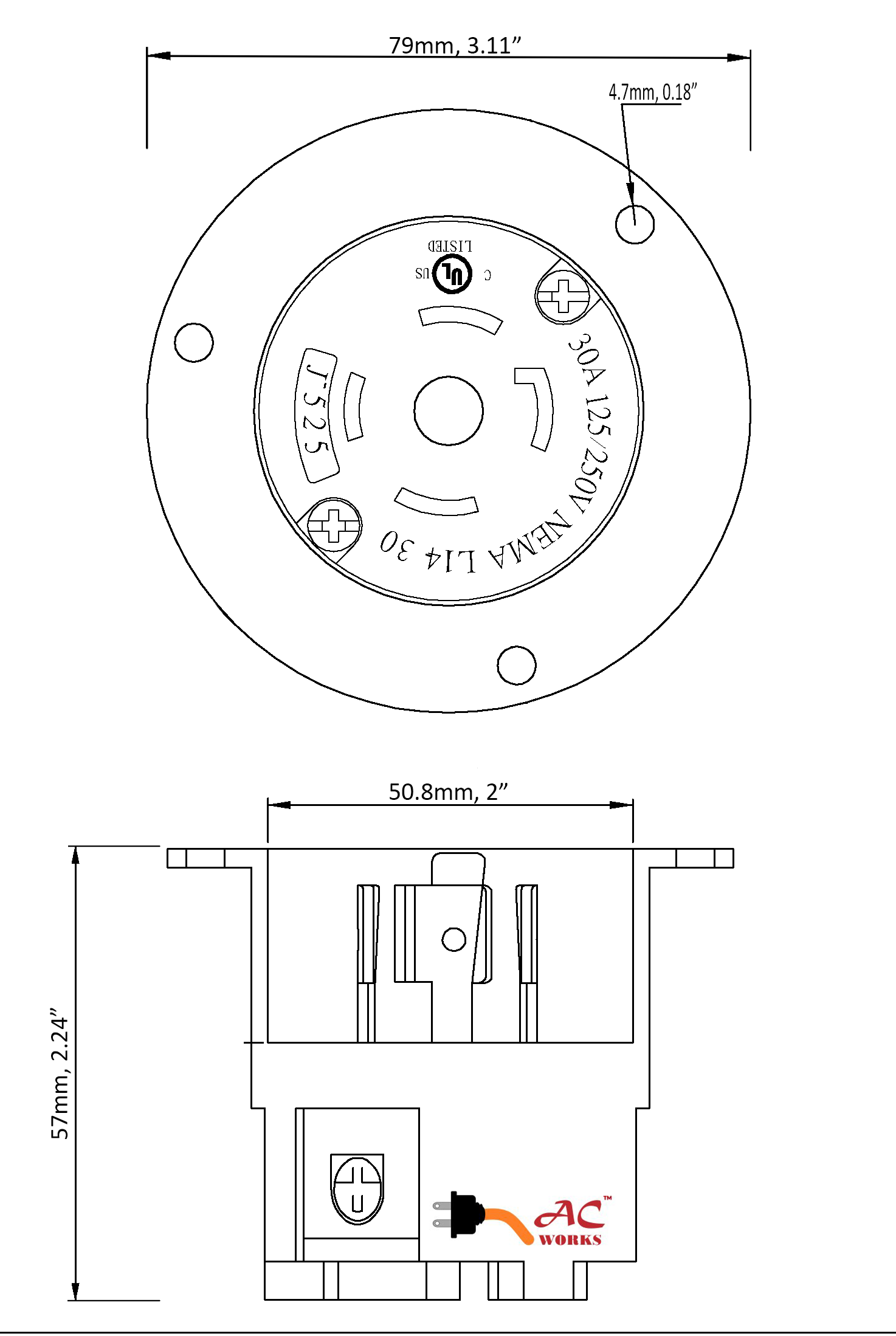

This product requires mounting holes with a saw size between 2.25'' (57.15mm) to 2.5'' (63.5mm).

Note: 18 Gauge is for 10 Amp, 16 Gauge is for 13 Amp, 14 Gauge is for 16 Amp, 12 Gauge is for 20 Amp.

Features

• Residential, Generator, Transfer Switch, and Cabin Power Inlet
• 30 Amp, 125/250 Volt Inlet
• NEMA L14-30P Locking Power Inlet
• cULus E237606

• 1-year Limited Warranty
• #2 size screws

Downloads

ASINL1430P Product Specification Sheet

California Residents: See Proposition 65 Information

AC WORKS® Brand Limited Warranty
