AC WORKS® [FML820R] 20A, 480V, NEMA L8-20R Flush Mount Locking Industrial Grade Receptacle

  • $19.99 USD
  • Save $10 USD

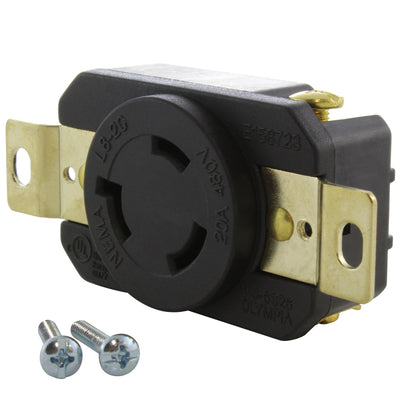

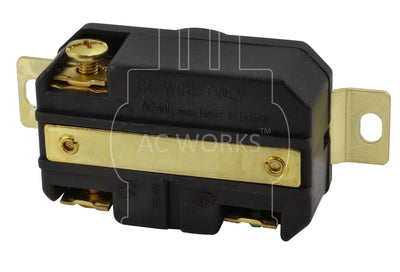

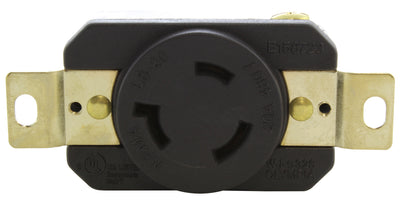

This AC WORKS® brand female receptacle features a 2-pole, 3-wire grounding system.  It is a NEMA L8-20R, 20 Amp, 480 Volt flush mount locking outlet.  This product is installed to fix or change a receptacle.  The receptacle features chemical and impact-resistant housing along with a quick installation process.  The FML820R is UL and C-UL certified.  Included with your purchase is a 1-year limited warranty.

Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire for 30 Amp


  • NEMA L8-20R, 20 Amp, 480 Volt
  • High Power Locking Receptacle
  • 2-Pole, 3-Wire Grounding
  • cULus E237606
  • Industrial 3-Prong 480 Volt Outlet

Common Uses

  • DIY


AC WORKS® Brand Limited Warranty
