ASEL1420R female connector assembly

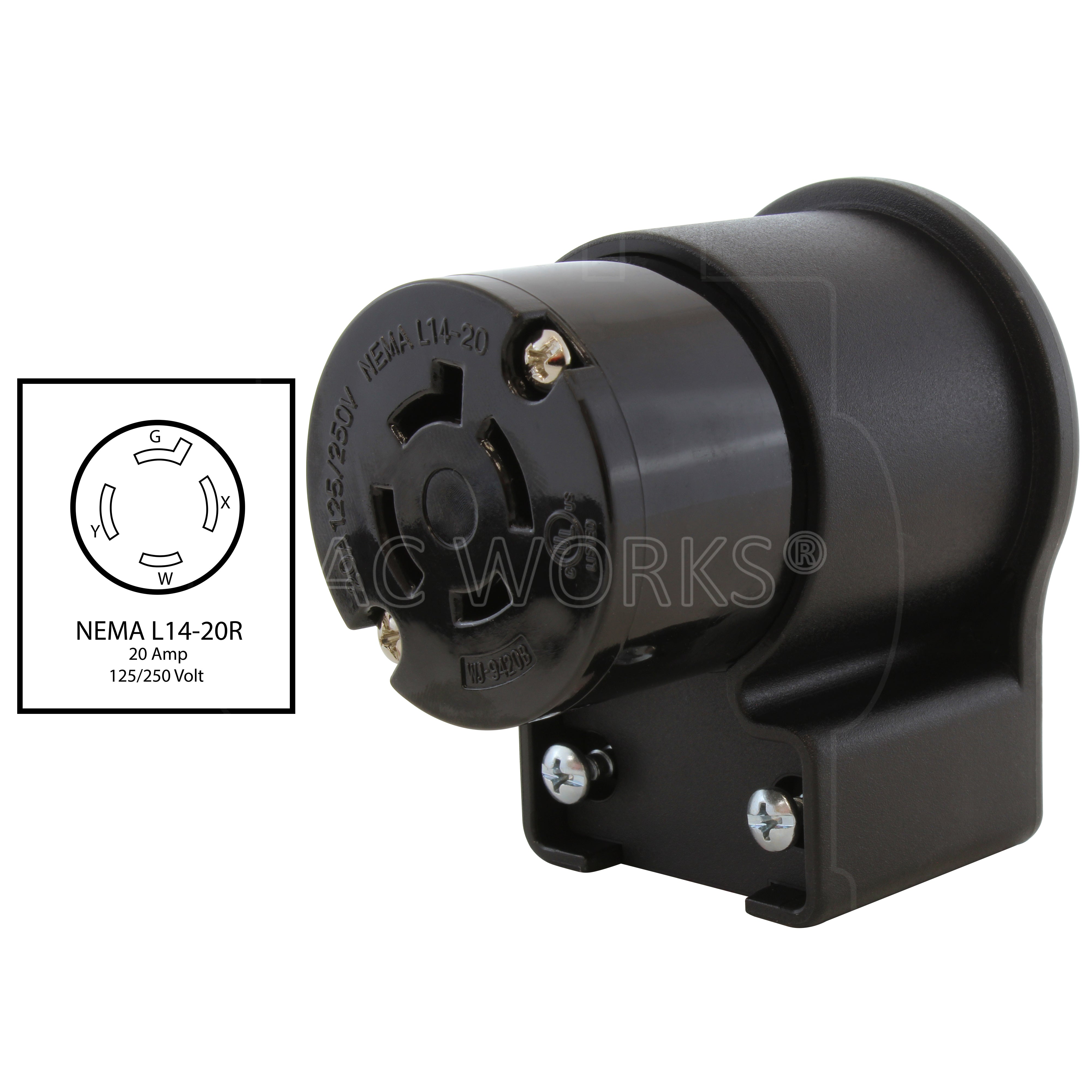

NEMA L14-20R 20A 125/250V 4-prong female connector

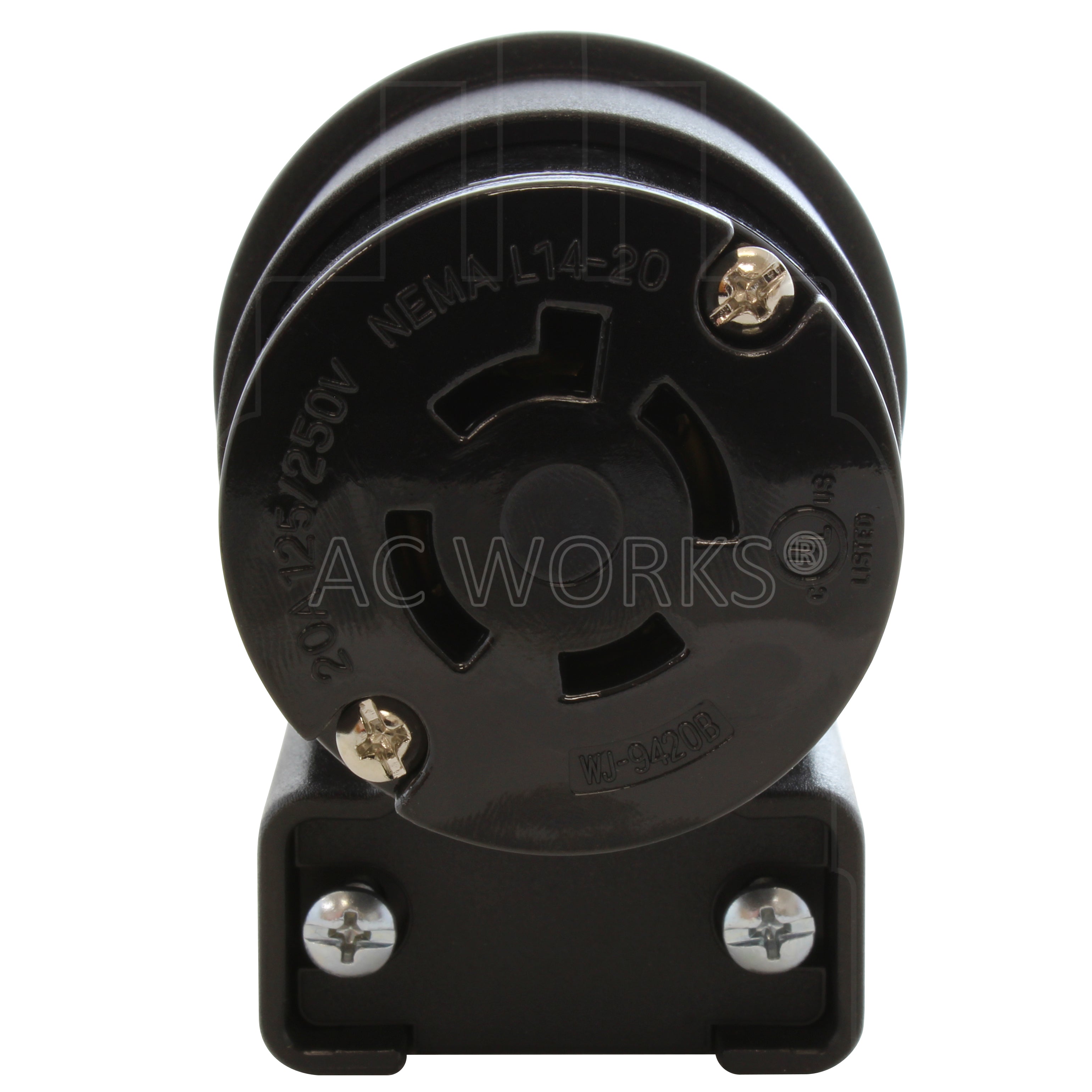

4-prong locking female connector

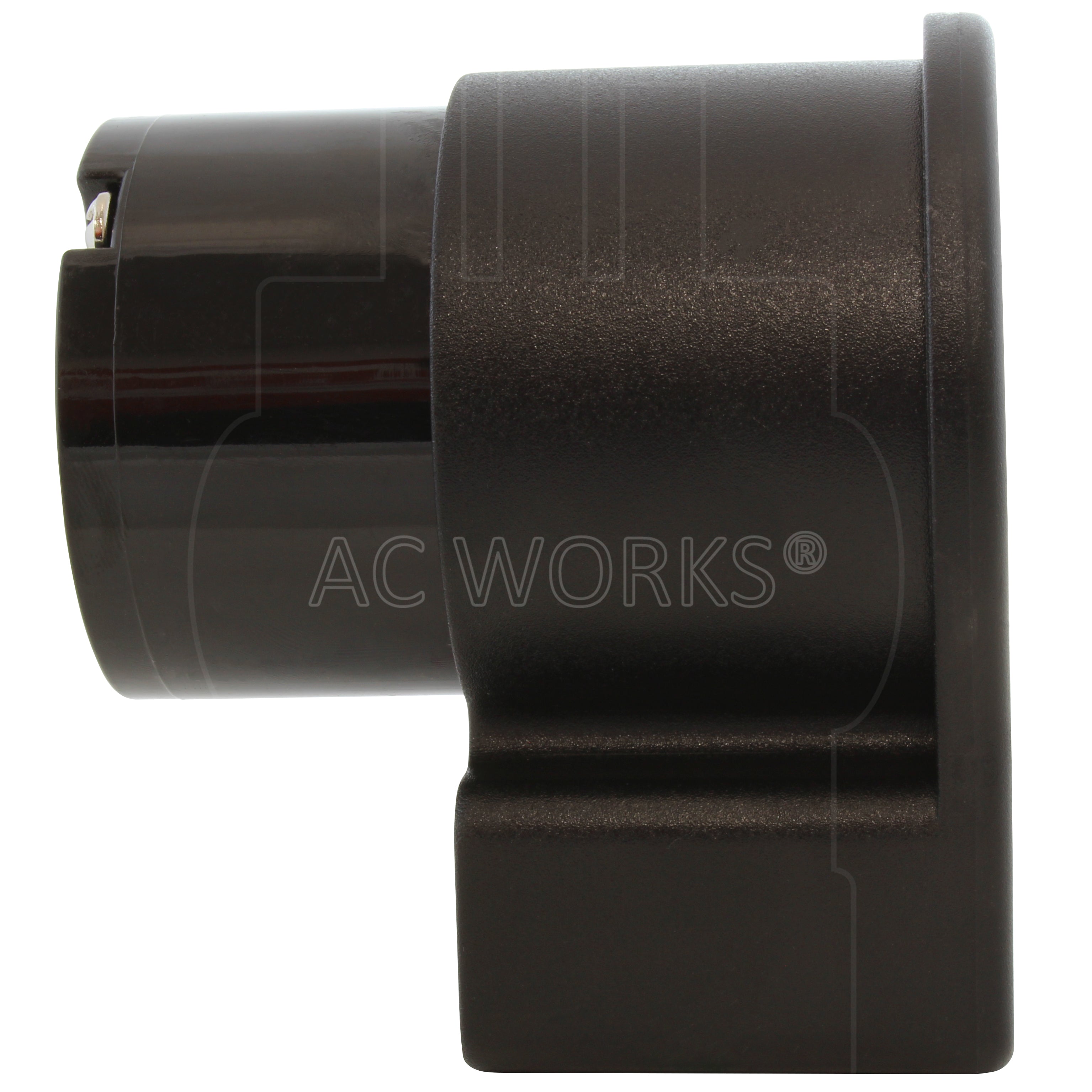

right angle connector
easy wiring structure
AC WORKS brand wiring device

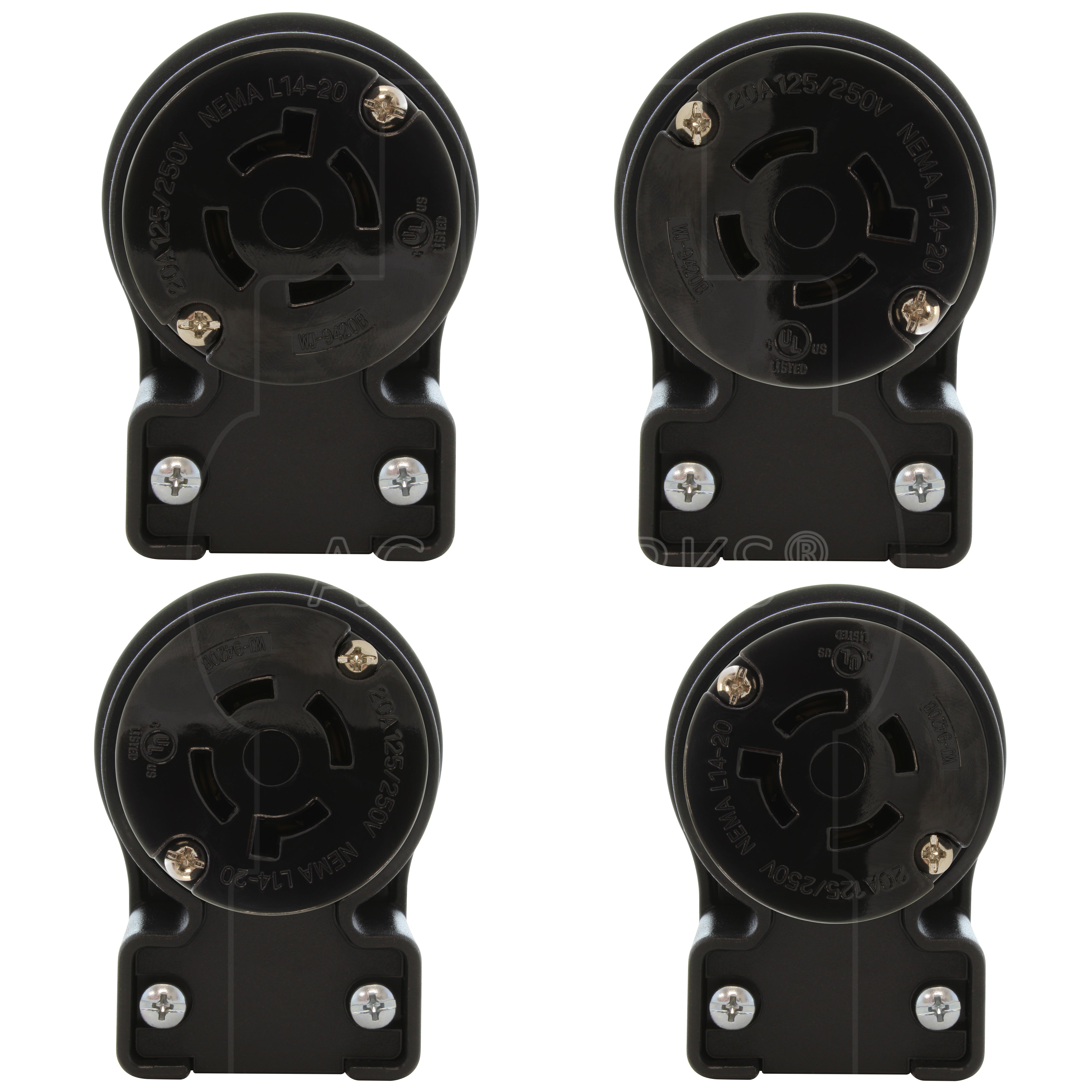

4 angle positions for connector
AC WORKS® [ASEL1420R] NEMA L14-20R 20A 125/250V 4-Prong Elbow Locking Female Connector With UL, C-UL Approval
application of all angles when plugged into inlet

AC WORKS® [ASEL1420R] NEMA L14-20R 20A 125/250V 4-Prong Elbow Locking Female Connector With UL, C-UL Approval

$28.74 USD

This AC WORKS® brand NEMA L14-20R elbow wiring device [ASEL1420R] is made of a very durable construction able to withstand impacts, chemicals, and weather.  It features a strain relief structure with SJT, SJO, SOO, STW, 12/4, 10/4, or 8/4 cables. DIY products have a 1-year limited warranty.

Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire for 30 Amp

Features

  • NEMA L14-20R 20 Amp 125/250 Volt Locking Female Connector
  • 4 Wire Female Connector
  • Prevents Items from Becoming Unplugged
  • Fast and Easy Install with 4 Positions Available
  • cULus E237606

    Common Uses
    • DIY Replacement Connections
    • Replacement Connector

Downloads

ASEL1420R Product Specification Sheet

AC WORKS® Brand Limited Warranty
