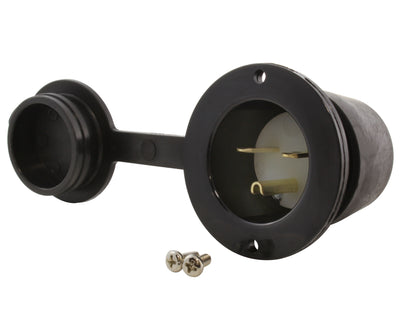

AC WORKS® [ASIN615P-WC] 15 Amp 250 Volt NEMA 6-15P Flanged Power Input Inlet with Covers
This AC WORKS® brand inlet wiring device [ASIN615P-WC] is a heavy-duty power input connection device. It is used for an industrial and commercial grade flange inlet. This inlet works with 14 to 12 AWG (American Wire Gauge) copper wire and is commonly used for boats, RVs, small trailers, or cabins.

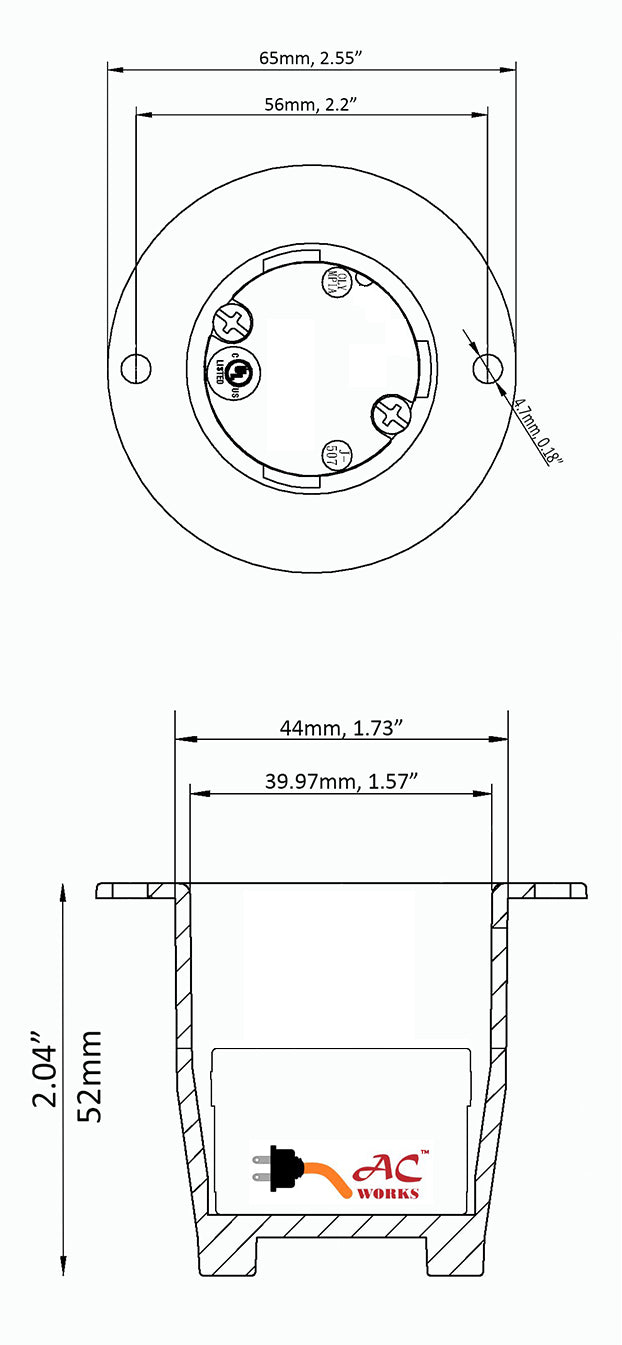

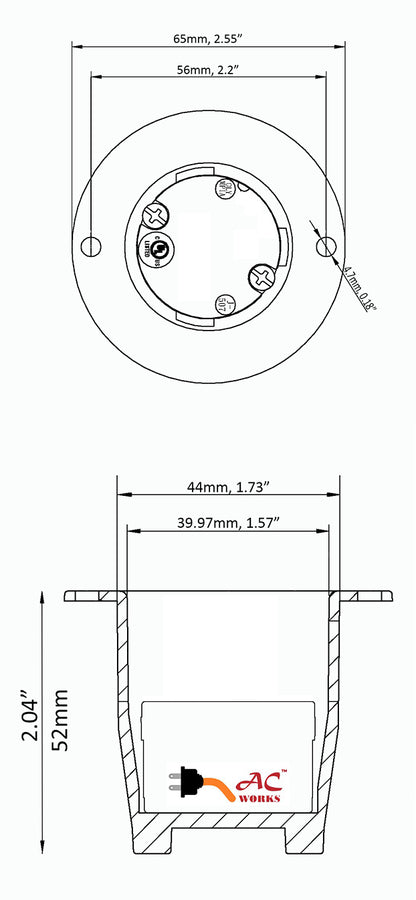

This product requires mounting holes with a saw size between 1.75'' (44.45mm) to 2.0'' (50.80mm).
Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire for 30 Amp
The product features a 15 Amp 250 Volt power input connection [NEMA 6-15P] and is a straight blade flange inlet. It has a 2-pole, 3-wire grounding system with a nylon casing and is back wired. Included with purchase is a 1-year limited warranty.
Features
- NEMA 6-15 Power Inlet with Covers
- 15 Amp, 250 Volt Inlet

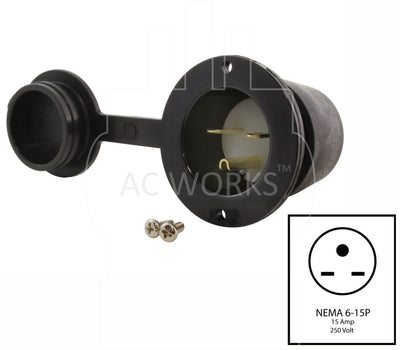

- NEMA 6-15P Power Inlet
- cULus E237606
- Durable Construction and Compact Design with Thick Quality Copper Connection
Common Uses
- RV Inlet
- Trailer Power
Downloads
15 Amp Straight Blade Inlet User Manual
California Residents: See Proposition 65 Information
AC WORKS® Brand Limited Warranty
