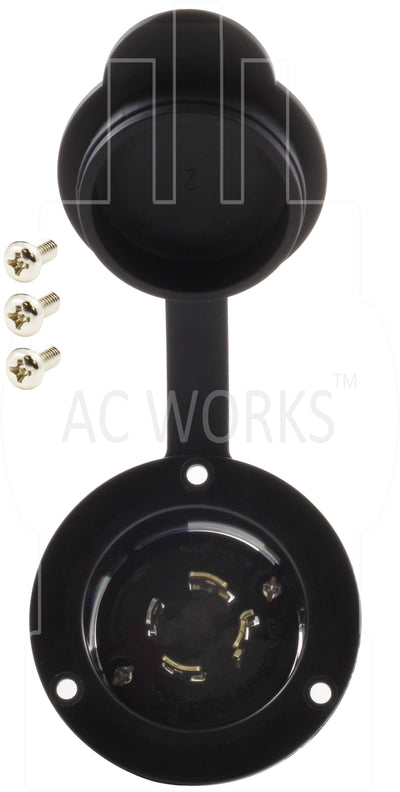

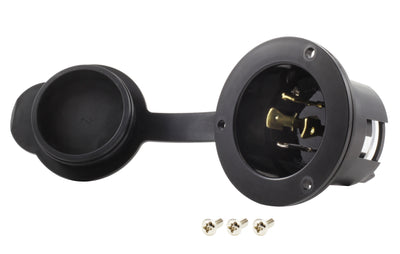

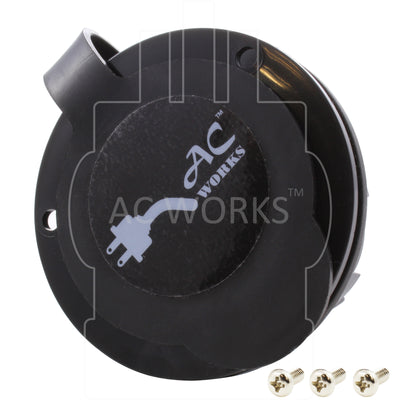

AC WORKS® [ASINL1420P-FC] 20A 125/250V L14-20P Power Input Inlet with Weather Cover

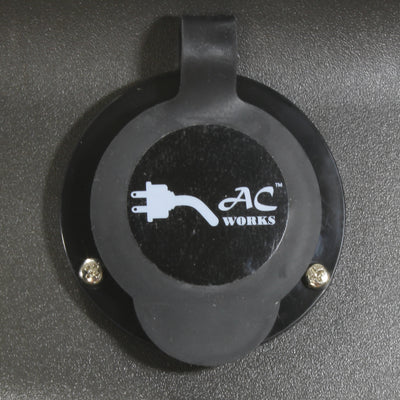

This AC WORKS® brand inlet wiring device is a heavy-duty power input connection device with a weather-tight cover. It is used for an industrial and commercial grade flange inlet. This inlet works with a 12 AWG (American Wire Gauge) or above, copper wire, and is common in residential use, transfer switches, cabins, and generators. Included in your purchase is a 1-year limited warranty.

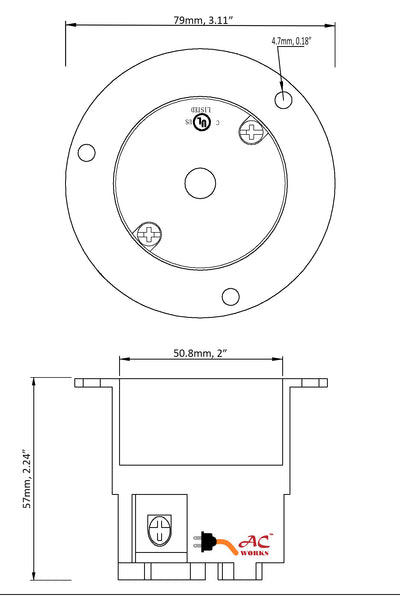

This product requires mounting holes with a saw size between 2.25'' (57.15mm) to 2.5'' (63.5mm).
Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire for 30 Amp
Features

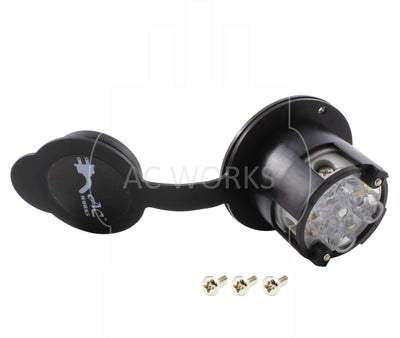

- Residential, Generator, Transfer Switch, and Cabin Power Inlet
- 20 Amp, 125/250 Volt Inlet

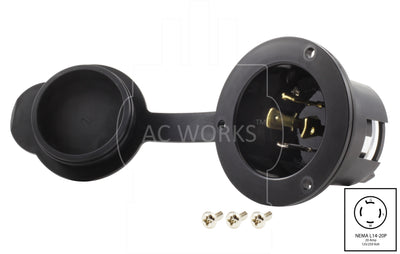

- NEMA L14-20P Locking Power Inlet
- cULus E237606
- 1-year Limited Warranty
Common Uses
- Transfer Switch Inlet
- Emergency Power
- Temporary Power
Downloads
20 Amp Locking Inlet User Manual
California Residents: See Proposition 65 Information
AC WORKS® Brand Limited Warranty
