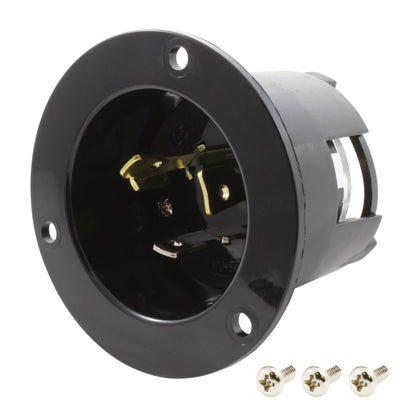

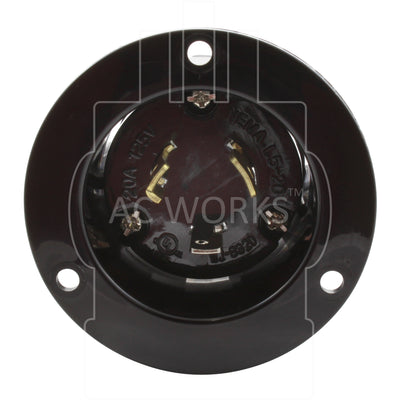

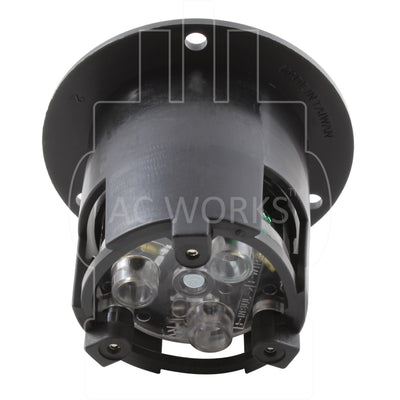

AC WORKS® [ASINL520P] 20A 125-Volt L5-20P Power Input Inlet UL and C-UL Listed

  • $18.95 USD
  • Save $10.04 USD

This AC WORKS® brand inlet wiring device [ASINL520P] is a heavy-duty power input connection device.  It is used for an industrial and commercial grade flange inlet.  This inlet works with 12 or 10 AWG (American Wire Gauge) copper wire and is commonly used for boats, cabins, residential, transfer switches, and generators.  Included with your purchase is a 1-year limited warranty.

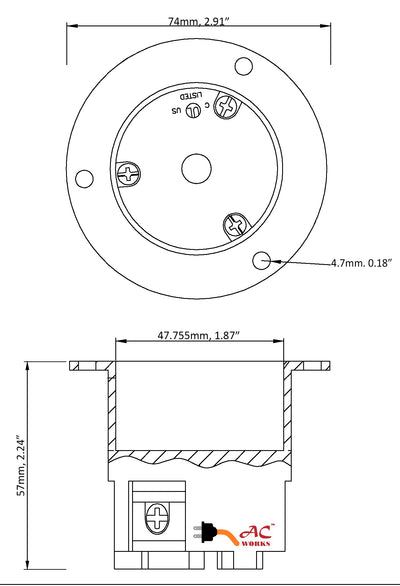

This product requires mounting holes with a saw size between 2.10'' (53.34mm) to 2.3'' (58.42mm).

Note: 18 Gauge is for 10 Amp, 16 Gauge is for 13 Amp, 14 Gauge is for 16 Amp, 12 Gauge is for 20 Amp.


  • Residential, Generator, Transfer Switch, and Cabin Power Inlet
  • 20 Amp, 125 Volt Inlet
  • NEMA L5-20P Locking Power Inlet
  • cULus E237606
  • 1-year Limited Warranty


20 Amp Locking Power Inlet User Manual
