AC WORKS® [ASINL720P-FC] 20A 277V L7-20P Power Input Inlet UL and C-UL Listed with Weather Cover
This AC WORKS® brand NEMA L7-20P inlet wiring device [ASINL720P-FC] is a heavy-duty power input connection device. This inlet works with 12 or 10 AWG (American Wire Gauge) copper wire and is commonly used for industrial equipment and railroad operations. Included in your purchase is a 1-year limited warranty.

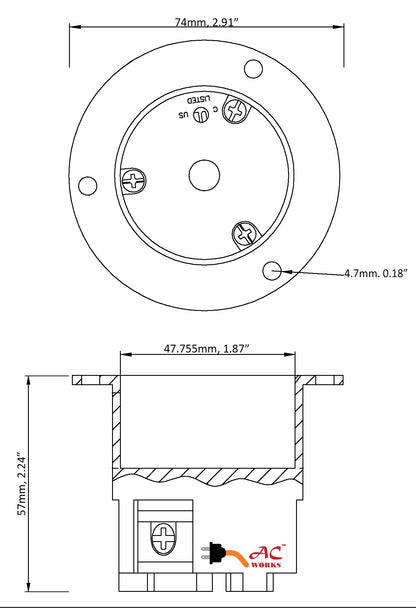

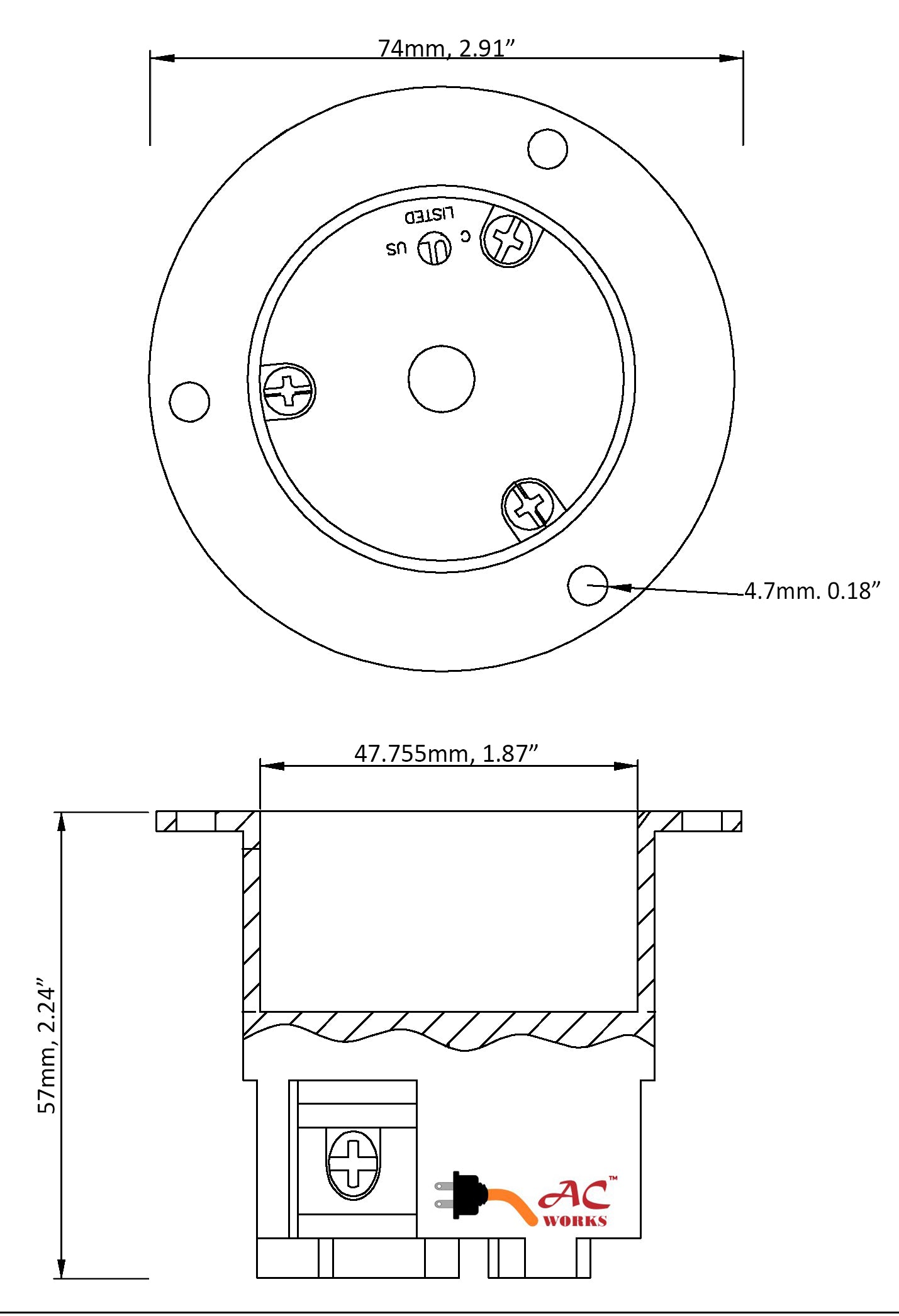

This product requires mounting holes with a saw size between 2.10'' (53.34mm) to 2.3'' (58.42mm).
Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire for 30 Amp
Features
- Industrial, Commercial, High Power source inlet
- 20 Amp, 277 Volt Inlet with Cover
- NEMA L7-20P Locking Power Inlet
- cULus E237606
- Durable Construction, Compact Design, and Thick Quality Copper Connection
Common Uses
- High Power Generator
- Industrial Power
Downloads
20 Amp Locking Power Inlet User Manual
AC WORKS® Brand Limited Warranty
