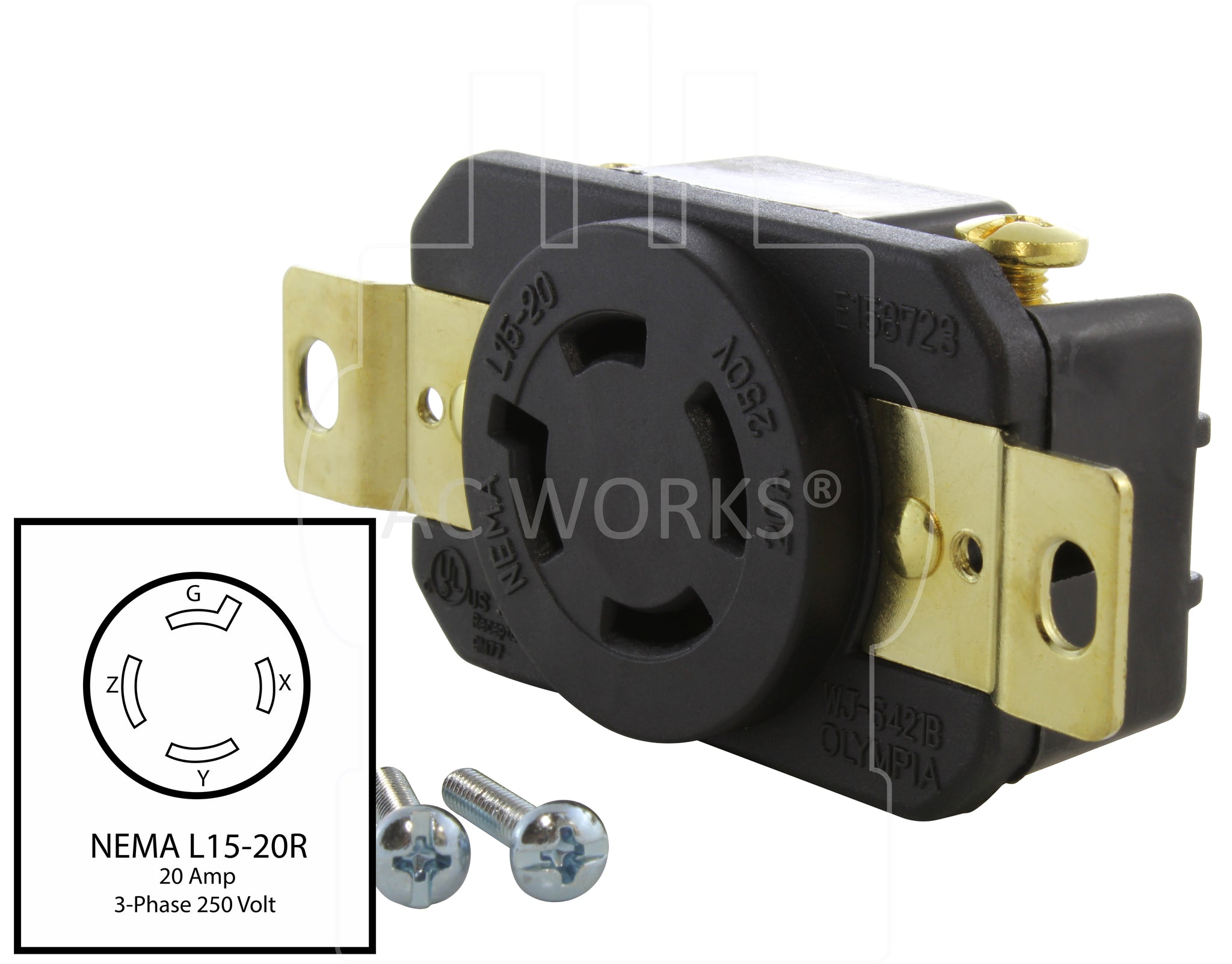

This AC WORKS® brand female receptacle [FML1520R] features a 3-pole, 4-wire grounding system.  It is a NEMA L15-20R, 20 Amp, 3-Phase 250 Volt flush mount locking outlet.  This product is installed to repair or change a receptacle.  It features chemical and impact-resistant housing along with a quick installation process.  The FML1520R is UL and C-UL certified.  Included with your purchase is a 1-year limited warranty.

Note: 18 Gauge wire is for 10 Amp, 16 Gauge wire is for 13 Amp, 14 Gauge wire is for 16 Amp, 12 Gauge wire is for 20 Amp, and 10 Gauge wire for 30 Amp

Features

• NEMA L15-20R, 20 Amp, 3-Phase 250 Volt
• Max 8,660 Watts
• High Power Locking Receptacle
• 3-Pole and 4-Wire Grounding
• cULus E237606

• Popular for Industrial & Commercial Use
• Made of PBT V-0 (Thermoplastic)

Common Uses

• DIY
