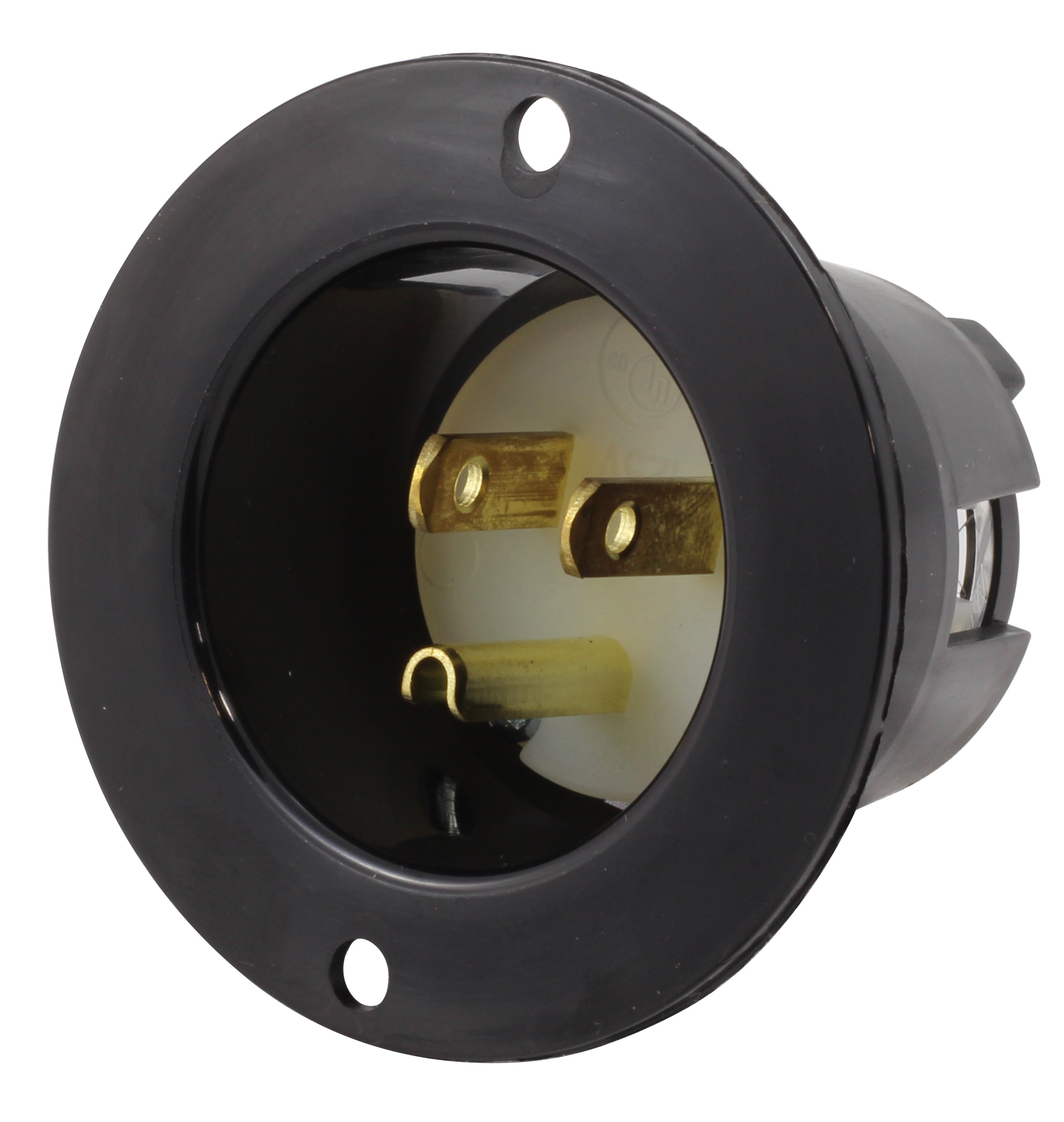

AC WORKS® [ASIN515P] 15A 125 Volt NEMA 5-15P Flanged Power Input Inlet
This AC WORKS® brand inlet wiring device is a heavy-duty power input connection device. It is used for an industrial and commercial grade flange inlet. This inlet works with 18 to 12 AWG (American Wire Gauge) copper wire and is commonly used for boats, RVs, small trailers, or cabins. Included in your purchase is a 1-year limited warranty.

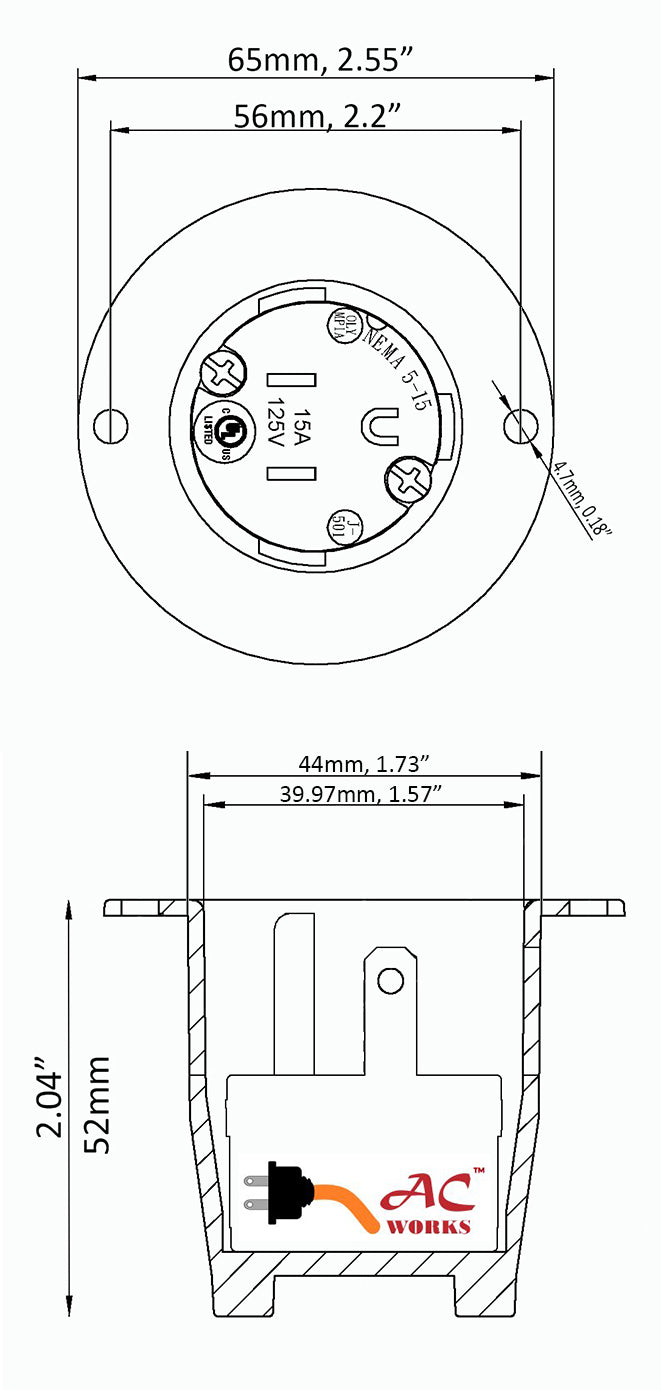

This product requires mounting holes with a saw size between 1.75'' (44.45mm) to 2.0'' (50.80mm).
Note: 18 Gauge is for 10 Amp, 16 Gauge is for 13 Amp, 14 Gauge is for 16 Amp, 12 Gauge is for 20 Amp.
The product features a 15 Amp household power input connection [NEMA 5-15P] and is a straight blade flange inlet. It has a 2-pole, 3-wire grounding system with a nylon casing and is back wired. Other popular uses for this product are RV and Electric Vehicle charging ports.
- RV/EV Camp Power Inlet
- 15 Amp, 125 Volt Inlet
- NEMA 5-15P Power Inlet
- cULus E237606
- 1-year Limited Warranty
- DIY Residential Power
