AC WORKS® [ASIN520P-WC] 20A 125V NEMA 5-20P Flanged Power Input Inlet with Weather Cover

ASIN520P-WC, AC Connectors, AC Works, flange inlet, industrial flange inlet, commercial flange inlet

ASIN520P-WC, AC Works, AC Connectors, RV inlet, EV charging inlet, camper inlet, trailer inlet

AC WORKS® [ASIN520P-WC] 20A 125V NEMA 5-20P Flanged Power Input Inlet with Weather Cover

Name: AC WORKS® [ASIN520P-WC] 20A 125V NEMA 5-20P Flanged Power Input Inlet with Weather Cover
Brand: AC WORKS
SKU: ASIN520P-WC
Price: 17.59 USD
Availability: InStock

$17.59 USD

Product variants

This AC WORKS® brand inlet wiring device is a heavy-duty power input connection device. It is used for an industrial and commercial grade flange inlet. This inlet works with 12 or 10 AWG (American Wire Gauge) copper wire and is commonly used for boats, RVs, small trailers, or cabins.

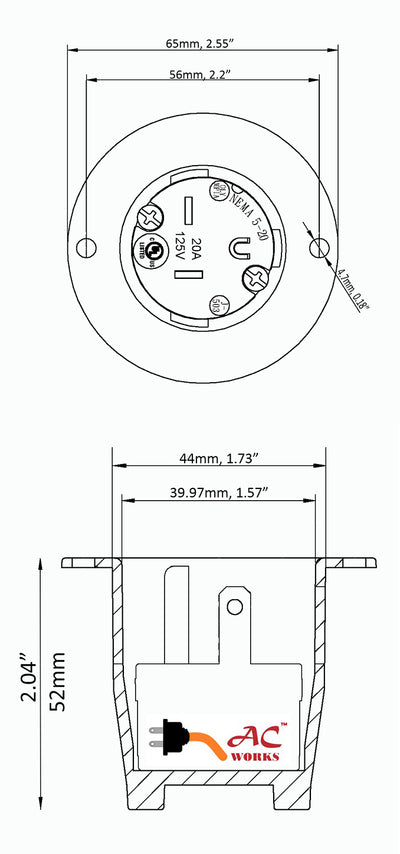

This product requires mounting holes with a saw size between 1.75'' (44.45mm) to 2.0'' (50.80mm).

Note: 18 Gauge is for 10 Amp, 16 Gauge is for 13 Amp, 14 Gauge is for 16 Amp, 12 Gauge is for 20 Amp, and 10 Gauge is for 30 Amp.

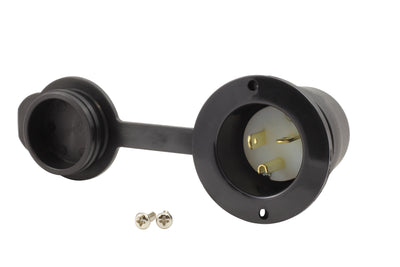

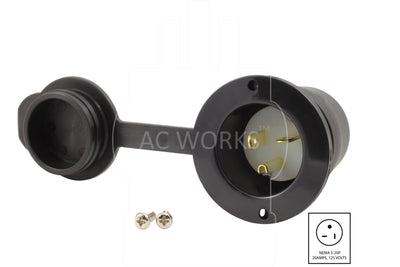

The product features a 20 Amp household power input connection [NEMA 5-20P] and is a straight blade flange inlet with a front and back weather cover. It has a 2-pole, 3-wire grounding system with a nylon casing and is back wired. Other popular uses for this product are RV and Electric Vehicle charging ports. Included with your purchase is a 1-year limited warranty.

Features
