AC WORKS® [PB1450PDU-018] NEMA 14-50 Piggy-Back Plug to PDU OUTLET BOX (GFCI & Breakers)

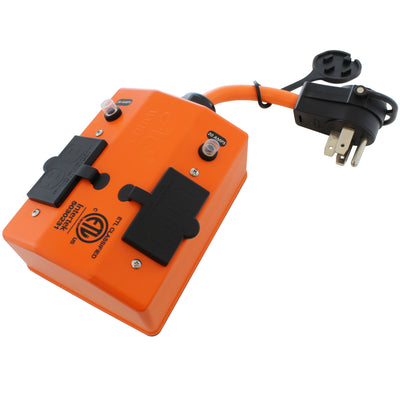

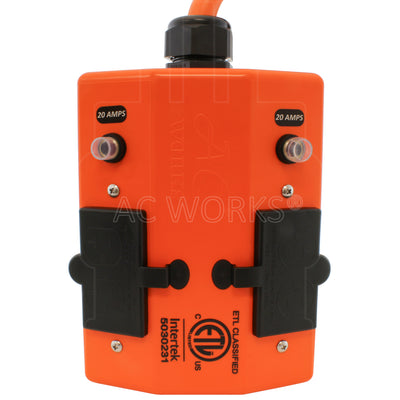

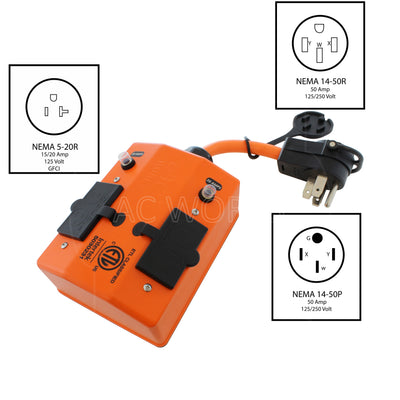

This AC WORKS® brand PDU with piggy-back plug features heavy-duty outlets and an anti-cold weather jacket, keeping the cord flexible in harsh temperatures.  This PDU has a NEMA 14-50P, 50 Amp, 125/250 Volt, plug to (4) GFCI NEMA 5-15/20R, 20 Amp, T-blade household female connectors. There are also two 20 Amp breakers dedicated to the 5-20R GFCI outlets.

The GFCI outlets come with status indicator lights and the cable is an STW, 10/4, 30 Amp copper wire, with a 600 Volt anti-cold weather jacket. The overall length of the product is 1.5ft. Included with your purchase is a 5-year limited warranty.

NOTE: The GFCI Outlet is a ground-fault circuit interrupter that protects people from electrical shock.  This type of interrupter shuts off electric power when it senses an imbalance between the outgoing and incoming current.

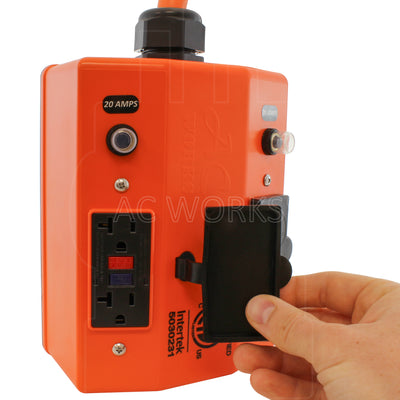

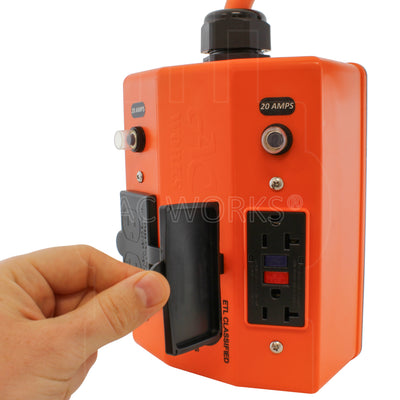

Four NEMA 5-15/20, 20 Amp, GFCI T-blade household connectors with status indicator lights; green indicating power is present, flashing or solid red indicating the product needs to be reset, and no light indicates a trip and/or no power is present.

Features

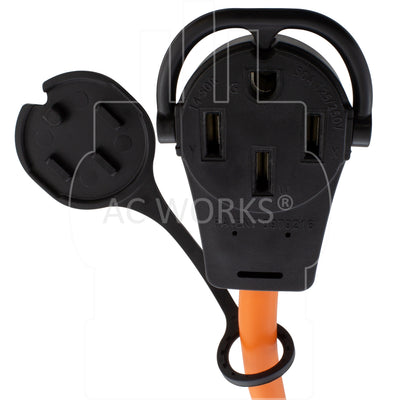

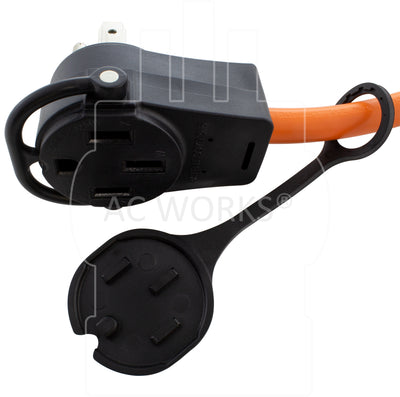

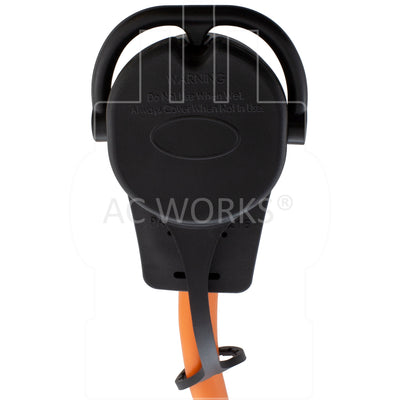

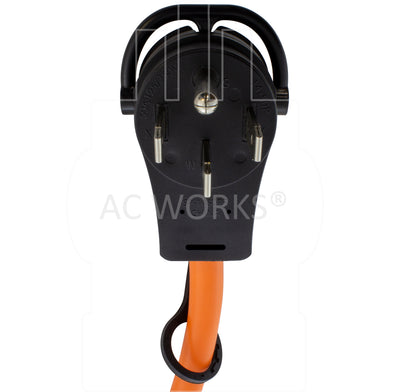

• NEMA 14-50P, 50 Amp, 125/250 Volt, 4-Prong Male Plug with Matching Piggy-Back Connector
• Four NEMA 5-15/20, 20 Amp, GFCI T-blade Household Connectors

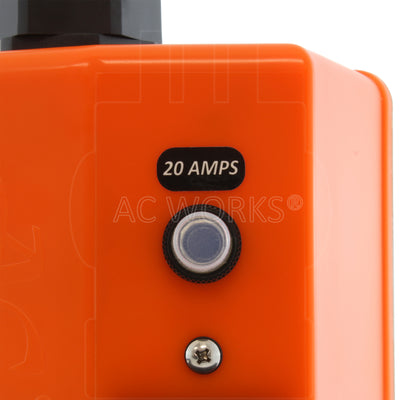

• (2) 20 Amp Breakers
• 14-50P to (4) 5-15/20R Power Distribution Cord
• Conforms to UL Standard 817
• Certified to CSA STD.C22.2 NO.21
• ETL Listed for USA & Canada
• 5-Year Limited Warranty

Common Uses

• Temporary Power
• Emergency Power
• PDU
